- 300Mbps Super Speed
- CD-Free Installation and Manual-Free Management
- Hardware EZ Switch for router, repeater and AP mode quickly changing.
- EZQoS (Easy Quality of service) Allow multiple network activities (FTP, Game, P2P…) to work smoothly at the same time
- Smart Wizard browser-based administration
- Remote management: Save/restore configuration files; Upgrades via web browser
- Firmware restoration
- Device discovery
- DHCP server, WAN DHCP client
- EZ switch for operation change
Network Standard: IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4
WAN: 1 x RJ45 for 10/100 BaseT
LAN: 4 x RJ45 for 10/100 BaseT; Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
Restore button: Push for 5 seconds to restore factory setting
EZSetup button: Automatically SSID and WEP or WPA configuration
Antenna: 2 external detachable dipole antenna
Operating Frequency: 2.4GHz
Operation Channel: 11 for N.America, 13 for EU, 14 for Japan
- 802.11n Draft 2.0 up to 300Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11b: 1, 2, 5.5, 11Mbps
- n mode:15.8~19.5dBm
- g mode:15.5~16.5dBm
- b mode: 15.8~19.5dBm
LED Indicator: Power x 1, AIR x 1, WAN x 1, LAN x 4
Device Discovery: Discover router in network and help user to invoke Web Configuration page
EZSetup: Help you to setup wireless and Internet connection easily
Firmware Restoration: Restore firmware while system enters rescue mode
Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
Logging: Dropped packet, security event, Syslog
Filtering: Port, IP packet, URL Keyword, MAC address
Encryption: 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK
Authentication: MAC address Access Control
- 100V~120V (50~60Hz) for US type
- 220V~230V (50Hz) for EU and UK type
DC output: 12V with max. 1A current or 9V with max 1A current
Dimensions (L x W x H): 179 X 119 X 37 mm
Operating Temperature: 0°C to 40°C (32°F to 104ºF)
Storage Temperature: -20° to 70° C (-4°F to 158°F)
Operating Humidity: 10% to 90% RH (Non-condensing)
Storage Humidity: 5% to 95% RH (Non-condensing)

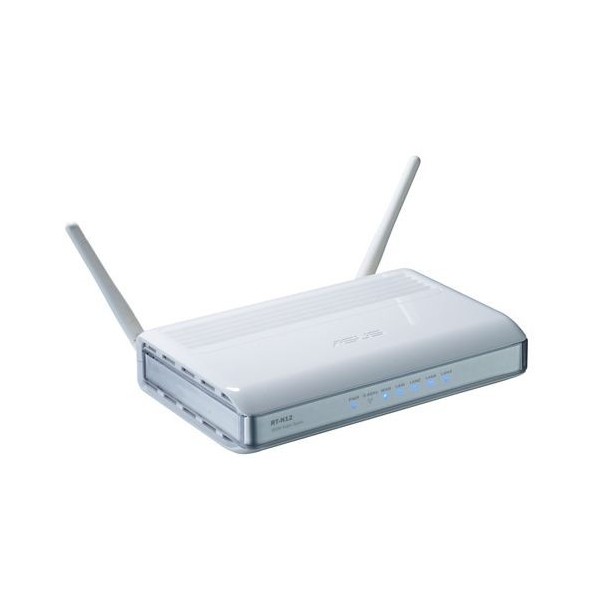

- RT-N12 x 1
- RJ45 Cable x 1
- Support CD x 1
- Antenna x 2
- Power Supply x 1
- SuperSpeedN up to 300Mbps data rate, suitable for seamless multimedia stream.
- Broadcom Accelerange™ deliver 450%* Signal coverage.
- CD-Free Installation &. Manual-Free Management:
- 4-Network-in-1: Provide extra network for prioritized bandwidth and access control.
- EZ Switch: Switch your operation mode only ONE-Touch
- 30,000 sessions for stable P2P download

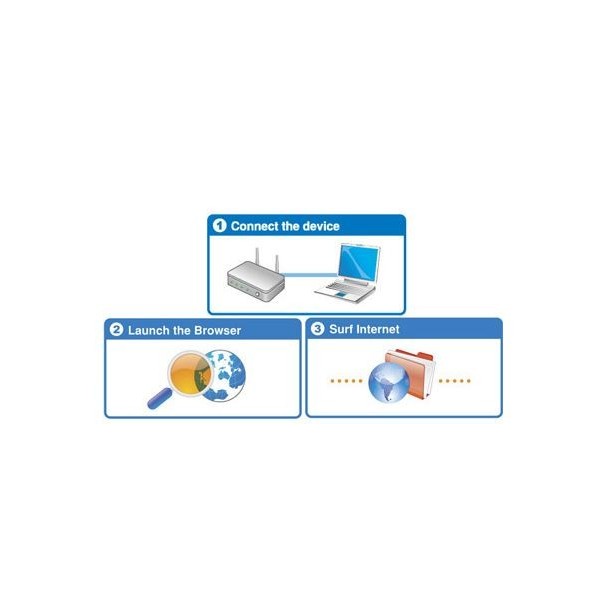

QIS(Quick Internet Setup)-3 Steps Internet Connection
Simply connect any Internet device to wireless router and QIS wizard will guide user to quickly link to Internet.

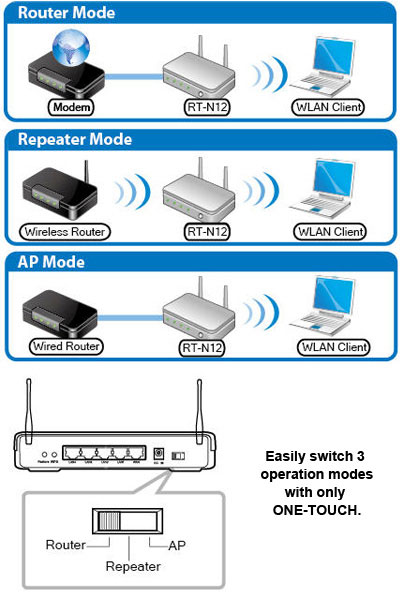

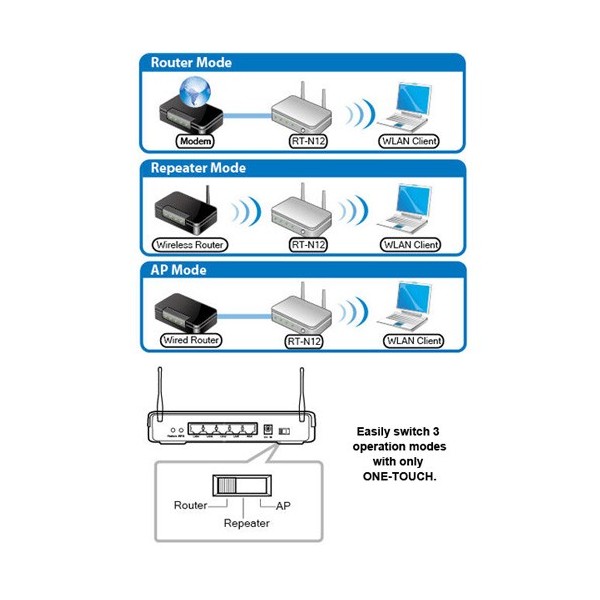

EZ Switch - Switch your Operation Mode only ONE-TOUCH
The ASUS' newly designed EZ Switch provides three operation mode, user can change it more easily, only ONE-TOUCH.
Network Map-Manual Free Management
Straight-forward design to help users to:
- Display the whole network status and clearly provide WAN/LAN status
- Securely connect to your wireless network and prevent intruders from using it
- Manage your network in minutes

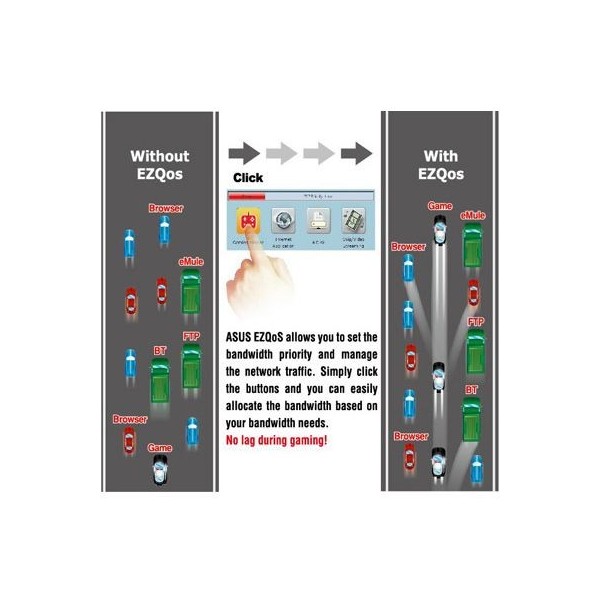

EZQoS - Quality of Service
TWith ASUS unique EZQoS engine, users can easily allocate bandwidth according to their individual needs by simply clicking on the buttons, such as voice or gaming, and assign more or less bandwidth to streamline multiple network activities (FTP, Games, P2P) to work smoothly at the same time
Dr. Surf, your personal wireless doctor, can automatically offer real-time diagnostics. Auto-detect Connection Problems.
- If there is any problem for internet connection, Dr. Surf can auto-detect and provide possible solutions.
- Ex. Your cable is not connect with the router.

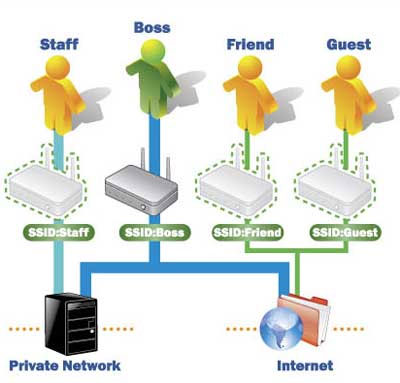

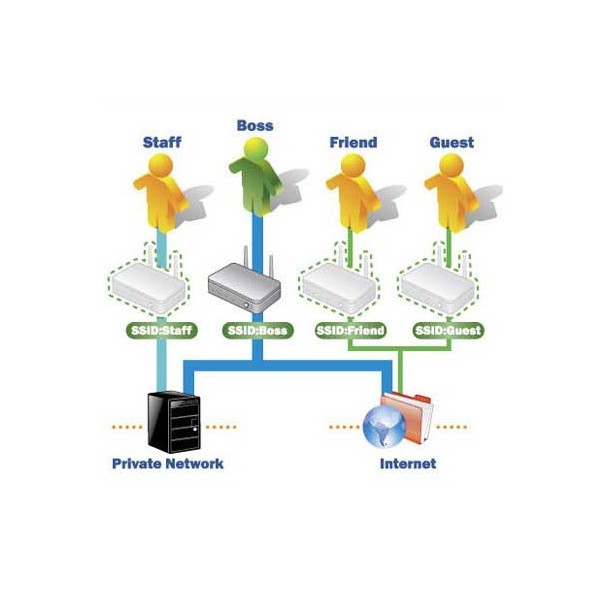

4-Network-in-1: Provide Extra Networks
The RT-N12 can provide 4 wireless networks which feature dynamic bandwidth allocation and access control. For example, High bandwidth and both network (private and Internet) access right for boss, middle bandwidth and private network only for staff, low bandwidth and internet access only for friend and guest. Best choice for SOHO wireless network.
