EliteGroup H61H2-M3 مادربرد الایت گروپ

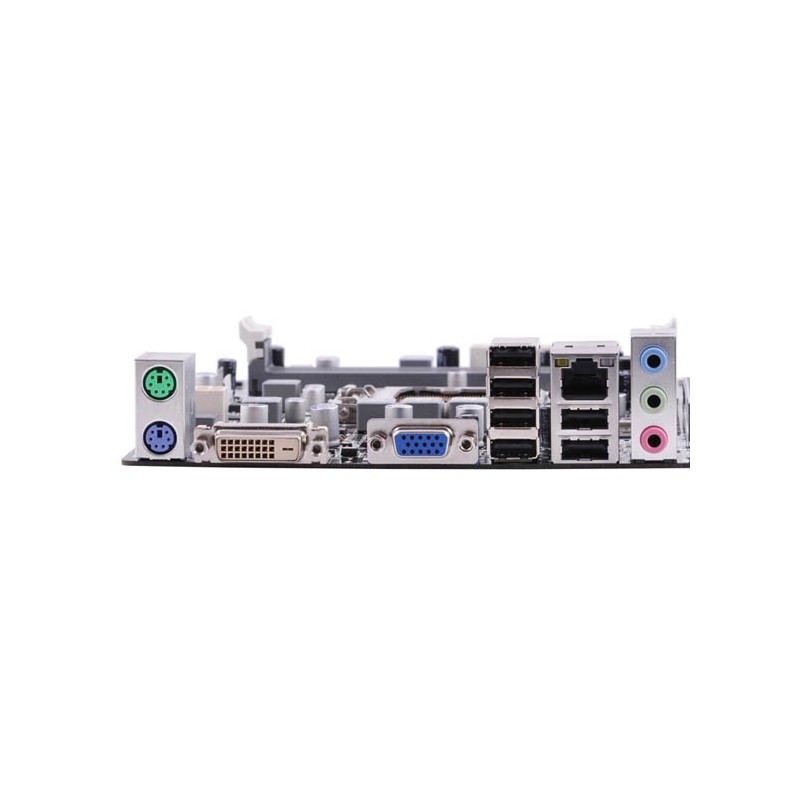

EliteGroup H61H2-M3 مادربرد الایت گروپ مادربرد الایت گروپ EliteGroup CPU º LGA1155 socket for new 2nd Generation Intel ® Core™ i7 series processor/Intel ® Core™ i5 series processor/Intel ® Core™ i3 series processor/Intel ® Pentium ® processors/Intel ® Celeron ® processors CHIPSET º Intel ® H61 Express Chipset MEMORY º Dual-channel DDR3 memory architecture º 2 x 240-pin DDR3 DIMM socket support up to 16 GB * º  *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB) º Support DDR3 1066/1333/1600(with Ivy Bridge) SDRAM Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation EXPANSION SLOT º 1 x PCI Express x16 Gen2.0 slot º 1 x PCI Express x1 slot º 2 x PCI slots STORAGE º Support by Intel ® H61     • 4 x Serial ATA 3.0Gb/s devices AUDIO º Realtek ALC662 6-channel audio º Compliant with HD audio specification LAN º Realtek 8111E Gigabit LAN Fast Ethernet Controller º Realtek 8105E 10/100 Lan(Optional) REAR PANEL I/O º 6 x USB 2.0 ports º 1 x D-sub(VGA) º 1 x DVI connector º 1 x HDMI Port(Optional) º 1 x RJ45 LAN connector º 1 x Audio port (Line-in, Line-out, Mic-in) º 1 x PS/2 keyboard & PS/2 mouse connectors INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply connector º 1 x 4-pin ATX 12V connector º 1 x 4-pin CPU_FAN connector º 1 x 3-pin SYS_FAN connector º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports º 4 x SATA 3Gb/s connectors º 1 x COM header º 1 x Case open header º 1 x SPDIF out header º 1 x Front panel switch/LED header º 1 x Front panel audio header º 1 x Speaker header º 1 x Clear CMOS header SYSTEM BIOS º AMI BIOS with 32Mb SPI ROM º Support ECS M.I.B III Utility º Support eBLU º Support eDLU º Support eSF FORM FACTOR º Micro-ATX Size, 244mm*200mm
