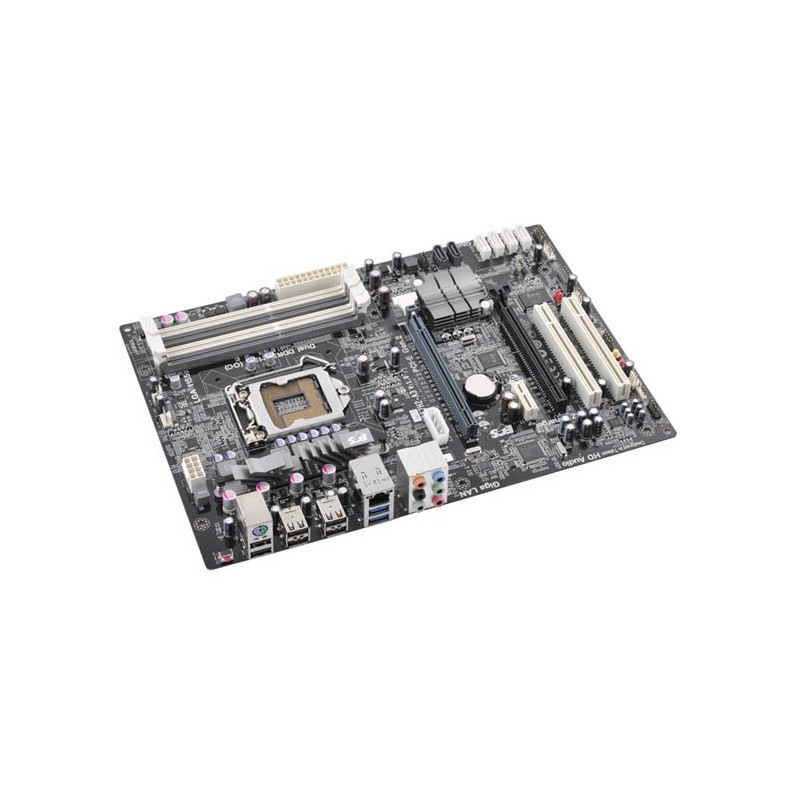

EliteGroup P67H2-A3 مادربرد الایت گروپ
0 رای   -

Rating: 0.0/5 (0 votes)

EliteGroup P67H2-A3 مادربرد الایت گروپ

کد کالا : 864
اشتراک گذاری محصول

EliteGroup P67H2-A3 مادربرد الایت گروپ

EliteGroup P67H2-A3 مادربرد الایت گروپ

معرفی به دوستان :

* فیلدهای مورد نیاز

  یا  انصراف

نا موجود
تخفیف 0 Rial
0 Rial

ارسال رایگان
ارسال رایگان
ارسال رایگان به سراسر ایران
پرداخت در محل
پرداخت در محل
پرداخت در محل ویژه شهر تهران
ضمانت کیفیت محصول
ضمانت کیفیت محصول
ضمانت کیفیت تمامی محصولات
7 روز ضمانت تعویض
7 روز ضمانت تعویض
هفت روز مهلت تست کالا
CPUº LGA1155 socket for new 2nd Generation Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/Intel® Core™ i3 series processor/Intel® Pentium® processors/Intel® Celeron® processors
º Supports Intel® Turbo boost 2.0 technology
º Support Hyper-Threading Technology CPU
º DMI 20Gb/s
CHIPSETº Intel® P67 Express Chipset
GRAPHICSº Support ATI CrossFireX™ Technology
MEMORYº Dual-channel DDR3 memory architecture
º Support DDR3 up to 2133(OC)/1866/1600/1333/1066 DDR3 SDRAM
º 4 x 240-pin DDR3 DIMM socket support up to 32GB*
º *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 16GB)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOTº 2 x PCI Express Gen 2.0 x16 slots
º 1 x PCI Express x1 slot
º 2 x PCI slots
º *The second PCIEX16 only support bandwidth x4
STORAGEº Support by Intel® P67
    • 4 x Serial ATA 3.0Gb/s devices
    • 2 x Serial ATA 6.0Gb/s devices
    • RAID0, RAID1, RAID5, RAID 10 configuration
AUDIOº Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification
LANº Realtek 8111E Gigabit LAN Fast Ethernet Controller
REAR PANEL I/Oº 1 x PS/2 keyboard/mouse combo port
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 6 x USB 2.0 ports
º 1 x Clear_CMOS button
º 2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices (blue)
INTERNAL I/O CONNECTORS & HEADERSº 1 x 4-pin power connector for VGA card
º 1 x 24-pin ATX Power Supply connector
º 1 x 8-pin ATX 12V Power Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin PWR_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x Power on button
º 1 x Speaker header
º 1 x Reset button
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x Serial Header(COM)
º 4 x SATA 3Gb/s connectors
º 2 x SATA 6Gb/s connectors
º 3 x USB 2.0 headers support additional 6 USB ports
º 1 x Chassis intrusion header
SYSTEM BIOSº AMI BIOS with 32Mb SPI ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Supports ACPI & DMI
º Audio, LAN, can be disabled in BIOS
º F7 hot key for boot up devices option
º Support over-clocking
º Support eDLU
º Support eGS
º Support eJIFFY
º Support eOC
º Support Page Up clear CMOS Hotkey
º Support eSF
º Supports ACPI 3.0 revision
º Support ECS M.I.B III Utility
    • CPU voltage adjustable
    • Memory voltage adjustable
    • PCH Chipset voltage adjustable
    • External Clock Adjustable
    • Multiple Frequency Adjustable by CPU
FORM FACTORº ATX Size, 305mm*210mm
