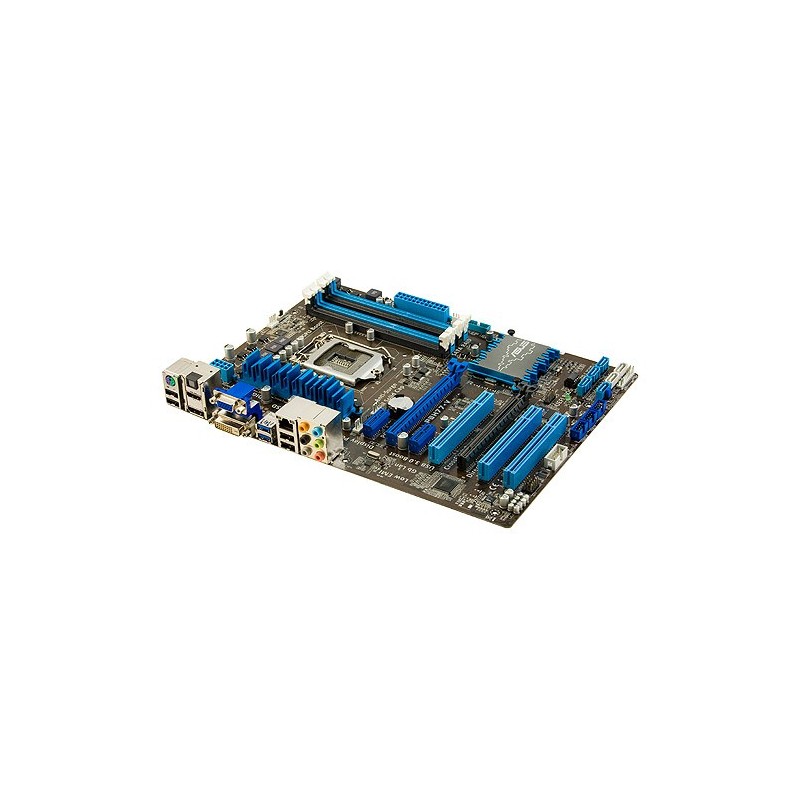

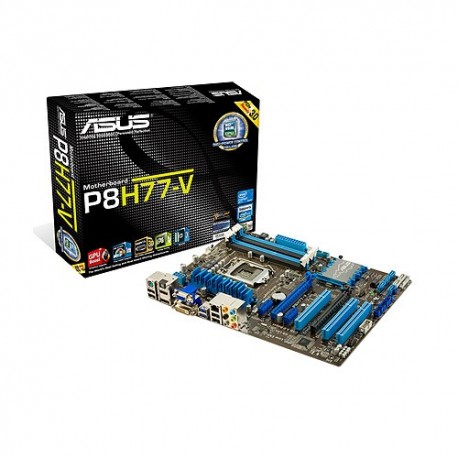

P8H77-V مادربرد ایسوس

P8H77-V مادربرد ایسوس مادربرد کامپیوتر Specifications CPU Intel® Socket 1155 for 3 rd /2 nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® H77 Memory 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default. Graphic Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics Multi-GPU Support Supports AMD Quad-GPU CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology * 1 Expansion Slots 1 x PCIe 3.0/2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode, black) * 2 2 x PCIe 2.0 x1 3 x PCI Storage Intel® H77 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology * 3 LAN Qualcomm Atheros, 1 x Gigabit LAN Controller(s) Audio VIA VT1708S 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection  - Optical S/PDIF out port(s) at back panel USB Ports Intel® H77 chipset : * 4 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H77 chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) Overclocking Features Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Special Features ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading 6 + 1 + 2 Phase Power Design - ASUS DIGI+ VRM Utility ASUS Protect 3 Technology : - Anti-Surge Protection - Low EMI Solution - ESD TurboV GPU Boost ASUS Exclusive Features : - MemOK! - AI Suite II - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert - ASUS Q-Fan ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Slot 100% All High-quality Conductive Polymer Capacitors Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s) Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE Support Disc Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) Form Factor ATX Form Factor 12 inch x 8.9 inch ( 30.5 cm x 22.6 cm ) Note *1: LucidLogix Virtu MVP supports Windows 7 operating systems. *2: The PCIe x 16 slot (black x4 mode) is compatible with PCIe x1 and x4 devices. *3: Supports on Intel® Core™ processor family with Windows® 7 operating systems. *4-1: Supports ASUS USB 3.0 Boost UASP Mode. *4-2: The USB 3.0 ports only support Windows® 7 or later versions. *5: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.
