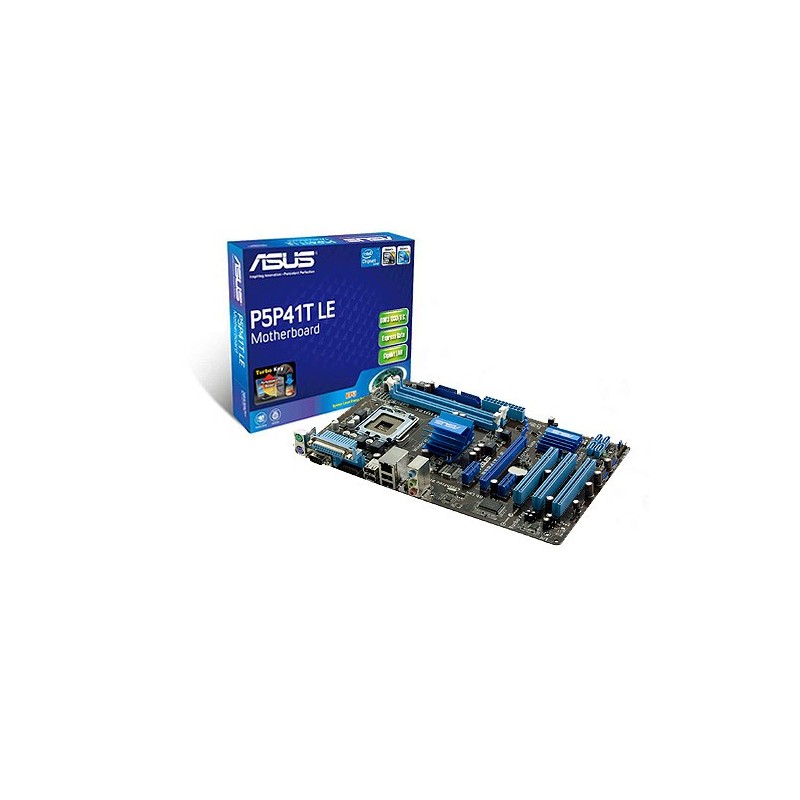

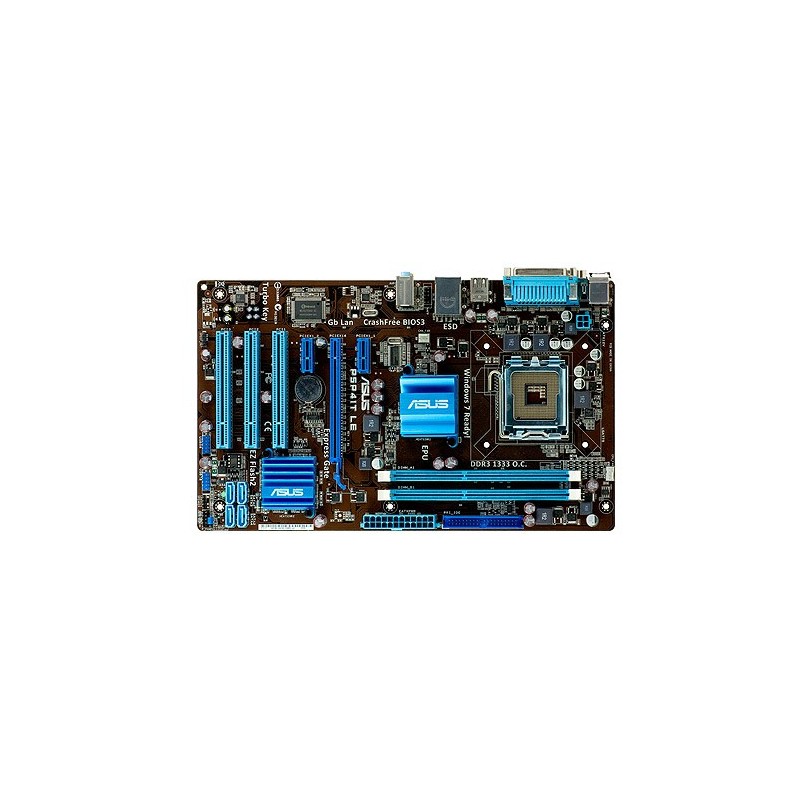

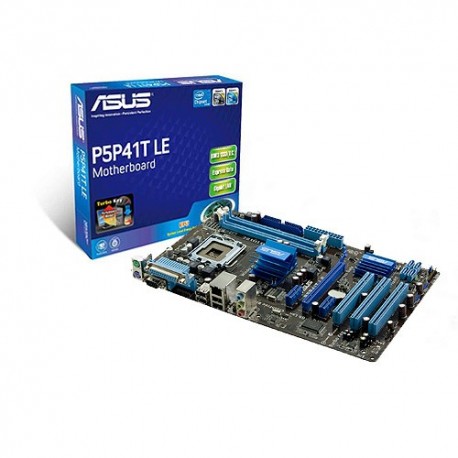

ASUS-P5P41T LE مادربرد ایسوس

ASUS-P5P41T LE مادربرد ایسوس مادربرد کامپیوتر Specifications CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors Compatible with Intel® 05B/05A/06 processors Support Intel® 45nm Multi-Core CPU *Refer to www.asus.com for Intel CPU support list Chipset Intel® G41 /ICH7 Front Side Bus 1333/1066/800 MHz Memory 2 x240-pin DIMM, Max. 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory Dual Channel memory architecture ** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List) *** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. Expansion Slots 1 x PCIe x16 1 x PCIe x1 2 x PCI VGA Integrated Intel GMA X4500 graphics Maximum shared memory of 1G Supports RGB with max. resolution 2048 x 1536 (@75Hz) Supports Microsoft® DirectX® 10 Storage Southbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s ports LAN Qualcomm Atheros Gb LAN Audio ALC887 8-Channel AUDIO CODEC *Choose the chassis with HD audio module in front panel to support 8-Channel audio output Supports Jack-detect and Multi-Streaming teconologies Supports S/PDIF out interface USB 8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel) ASUS Unique Features ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Fan ASUS Anti-Surge ASUS EPU-L ASUS Express Gate Turbo Key AI NET2 Overclocking Features SFS (Stepless Frequency Selection) - FSB tuning from 200MHz to 800MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall) Back Panel I/O Ports 1 x D-Sub 1 x Parallel port 1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x LAN(RJ45) port(s) 4 x USB 2.0/1.1 1 x COM port 3 x Audio jacks Internal I/O Connectors 2 x USB connectors support additional 4 USB 2.0 ports 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x High Definition front panel audio connector 1 x S/PDIF Out connector 1 x System Panel 1 x Internal Speaker connector 24-pin EATX power connector 4-pin ATX 12V Power connector BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5 Accessories User's manual 1 x UltraDMA 133/100/66 cable 2 x SATA cable(s) I/O Shield Support Disc Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update Form Factor uATX Form Factor 9.6 inch x 7.9 inch ( 24.4 cm x 20.1 cm )
