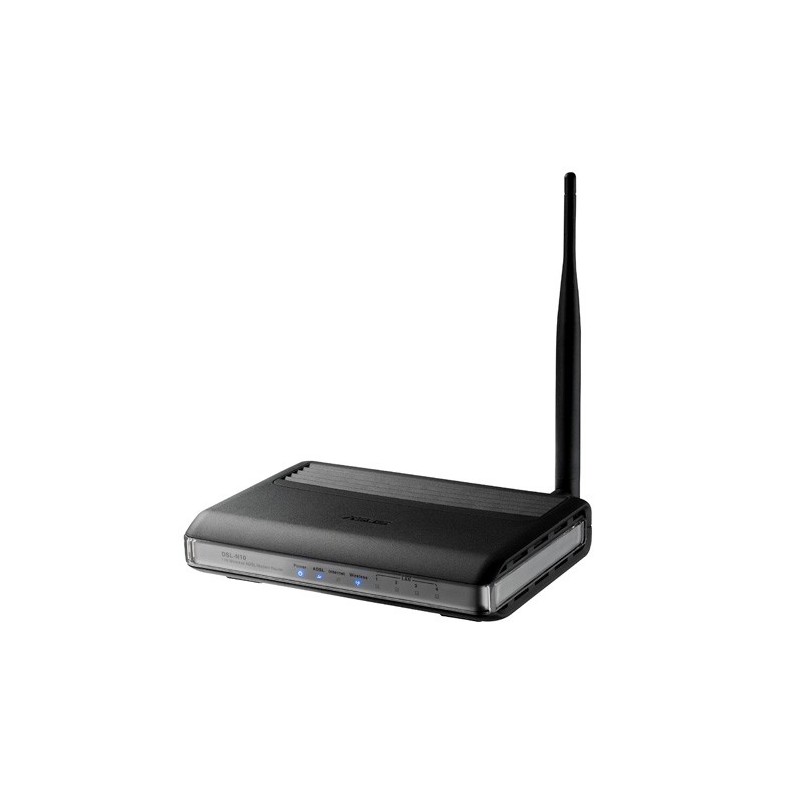

ADSL DSL-N10 مودم روتر وایرلس ایسوس ‎‎

ADSL DSL-N10 مودم روتر وایرلس ایسوس ‎‎ مودم ایسوس ASUS Features Modem and Router Functionality in One Powerful Package The ASUS DSL-N10 is a true 2-in-1 device, serving as a wired and wireless modem and router. It combines all the functionality of both device classes, and adds to it with a range of features, including a powerful, wide coverage 5dBi antenna, four multiple SSIDs, plug-and-connect easy setup, and simple bandwidth prioritization. Specifications Network Standard: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IPv4 Features: - ANSI T1.413 Issue 2, - ITU-T G.992.1 Annex A (G.dmt), - ITU-T G.992.2 (G.lite), - ITU-T G.994.1 (G.hs), - ITU-T G.992.3 (G.dmt.bis), - ITU-T G.992.5 Annex A/M - ADSL 2/2+ 24Mbps downstream Antenna: Detachable 5 dBi antenna x 1 LED Indicator: Power,ADSL,Internet,WLAN,LAN x 4 Button: WPS Button,Reset Button,Power Switch,Wireless on/off Button Ports: - 1 x RJ11 for ADSL - 4 x RJ45 for 10/100 BaseT for LAN Operating Frequency: 2.4GHz Operation Channel: - 11 for N. America - 13 Europe (ETSI) Memory: - 4MB Flash/32MB SDRAM for Wi-Fi - 1MB Flash/2MB SDRAM for ADSL Receive Sensitivity: - -95dBm@1Mbps - -92dBm@11Mbps - -75dBm@54Mbps - -72dBm@72.2Mbps - -68dBm@150Mbps Output Power: - b mode : 17 ~19 dBm - g mode : 15 ~17 dBm - n mode : 15 ~17 dBm Security: 64-bit WEP,128-bit WEP,WPA2-PSK,WPA-PSK,WPA-Enterprise,WPA2-Enterprise,Radius with 802.1x,WPS support Firewall & Access Control: - Built-in NAT and SPI firewall - Port, IP packet, URL, MAC filter Management: - Web-based GUI configuration - Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI - Auto VPI/VCI detection - Configuration backup and restore - Diagnostics - Log & Trace function Utilities: - ADSL Setting Wizard - Firmware Restoration - Device Discovery Power Adapter: - AC Input 100 ~240 V(50~60HZ) - DC Output 12 V/1 A - Power Consumption 12 W Max. Certificates: CE,FCC,A-Tick,IC,PCT Dimensions: 164 x 116.5 x 31 mm (WxDxH) Weight: 255 g (Device Only) Environmental: Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF) Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F) Operating Humidity: 5 % to 95 % (Non-condensing) Storage Humidity: 5 % to 95 % (Non-condensing) Package Content: - DSL-N10 Wireless ADSL Router - 5dBi detachable antenna - Power adapter - Support CD (user manual, utilities) - RJ45 cable - RJ11 cable - Quick Start Guide Description Plug-n-Surf Installation 3 steps is all you need to setup the router. Graphic-oriented User Interface Icon-based user interface displays the entire network status and facilitates advanced settings such as internet security in few clicks. Powerful and wide coverage Featuring a 5dBi high-gain antenna, the DSL-N10 provides a boosted signal to ensure extended wireless networking range. Bandwidth allocation and access control The DSL-N10 can provide up to four wireless networks. You can allow different bandwidth priority and different access right to each network.
