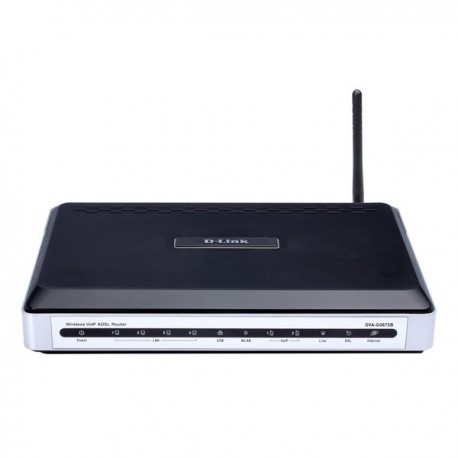

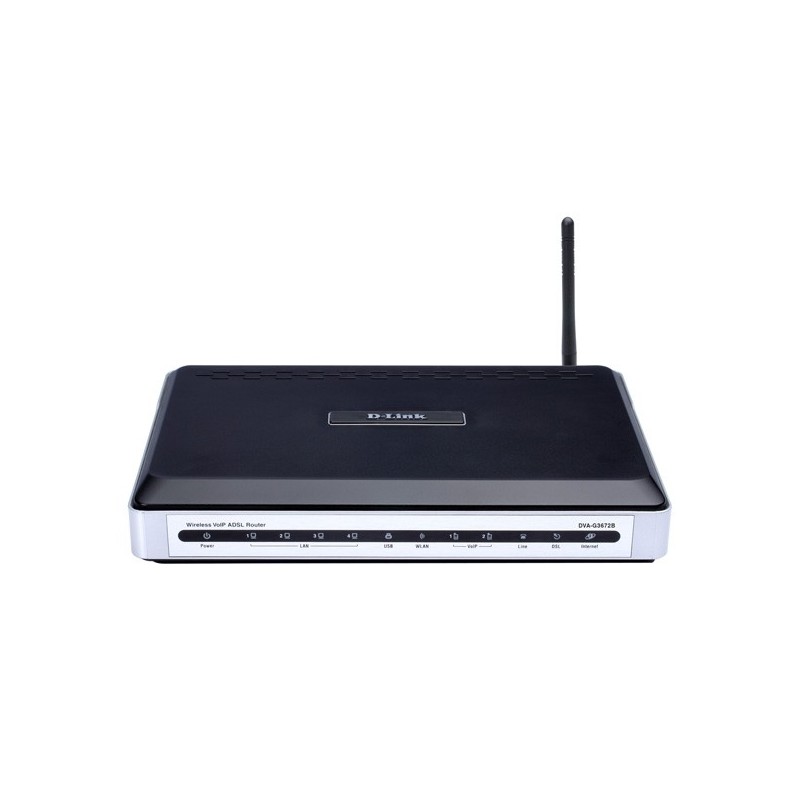

DVA-G3672B‎ مودم وایرلس دی لینک

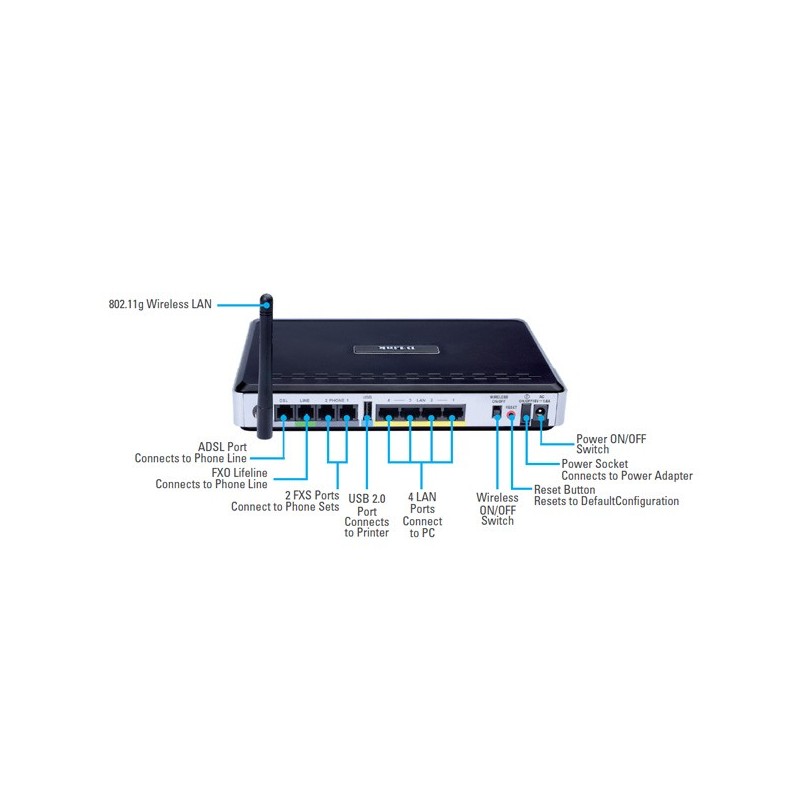

DVA-G3672B‎ مودم وایرلس دی لینک مودم دی لینک D-Link Specifications Device Interfaces: - RJ-11 ADSL port - RJ-45 10/100BASE-TX Ethernet ports with auto MDI/MDIX - Built-in Wireless N 150 - Factory reset button - WPS button - Wireless on / off switch - Power on / off switch Wireless LAN: - 802.11b/g standards, Wireless N 150 - Optional 802.11n capabilities - Up to 150Mbps throughput - Frequency range: 2.4GHz to 2.484GHz - Antennas: Dual 2x2 built-in MIMO antennas - 64/128 bits WEP data encryption - WPA/WPA2 (Wi-Fi Protected Access) security - Multiple SSID - 802.11e Wireless QoS (WMM/WME) - MAC address-based access control Wireless Transmission Power: 17dBm +/- 2dBm ADSL Standards: - ADSL standards: Multi-mode, ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 (G.lite) Annex A, ITU G.994.1 (G.hs) - ADSL2 standards: ITU G.992.3 (G.dmt.bis) Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A - ADSL2+ standards: ITU G.992.5 Annex A/L/M ADSL Data Rates: - G.dmt: 8Mbps downstream, 832Kbps upstream - G.lite: 1.5Mbps downstream, 512Kbps upstream - ADSL2: 12Mbps downstream, 1Mbps upstream - ADSL2+: 24Mbps downstream, 1Mbps upstream ATM & PPP Protocols: - ATM Forum UNI3.1/4.0 PVC (up to 16PVCs) - ATM Adaptation Layer Type 5 (AAL5) - ATM QoS (Traffic Shaping) - Bridged or routed Ethernet encapsulation - VC and LLC based multiplexing - PPP over Ethernet (PPPoE) - PPP over ATM (RFC 2364) - ITU-T I.610 OAM F4/F5 Router Features: - WAN/LAN Switchable Port - NAT (maximum 4096 NAT sessions) - DHCP server/client/relay - Static Routing, RIP v.1, v.2 - Universal Plug and Play (UPnP) Compliant - Dynamic Domain Name System (DDNS) - Virtual Server - SNTP, DNS proxy and IGMP proxy Firewall: - Built-in NAT firewall - Stateful Packet Inspection (SPI) - DoS attacks prevention - Packet filtering (IP/ICMP/TCP/UDP) - Intrusion Detection System (IDS) - DMZ Virtual Private Network (VPN): Multiple PPTP / IPSec / L2TP pass-through Device Configuration / Management: - Installation Wizard - Web-based GUI for configuration, firmware upgrade - Code lock to prevent improper firmware upgrade - Telnet - Syslog monitoring - TR-069 Client - WPS Quality Of Service: - LAN to WAN traffic prioritization / Classification - 802.1p (0 to 7) traffic prioritization - Traffic Shaping Security: - IGMP Snooping with 32 Multicast groups - PVC/VLAN port mapping (bridge mode) - Parental Control (URL blocking, scheduling) Power Input: Through 12VAC 1A external power adapter Diagnostic LEDs: - Power - LAN (1 to 4) - WLAN - DSL - Internet - WPS Dimensions: 195.16 x 115.93 x 36.55 mm (7.7 x 4.6 x 1.4 inches) Operating Temperature: 0˚ to 40˚ C (32˚ to 104˚ F) Storage Temperature: -20˚ to 70˚ C (-4 ˚ to 158˚ F) Operating Humidity: 5% to 95% non-condensing Certifications: CE (EN55022 / EN55024 / EN300 328 / EN301489) Description What This Product Does This all-in-one DVA-G3672B router provides everything from a single box. Connect it to you phone wires, and you can establish a high-speed ADSL2- line and make phone calls anywhere in the world using the Internet. This router lets a group of users surf the web and two people make Internet phone calls at the same time. It has a built-in 802.11g wireless interface and four LAN ports, so family members can connect to the network wirelessly or through the network cables. A USB port allows you to share your printer and print out web pages with your family. Clear, Smooth Voice Over The Internet The DVA-G3672B incorporates a high-speed ADSL2- modem and Quality of Service (QoS) especially tuned for VoIP traffic to ensure that voice received through the Internet is the same as or even surpasses that received on the ordinary phone. It supports many useful functions such as call transfer, caller ID display, call hold, call waiting and hot lines to make it convenient to dial out or answer phone calls. Everything You Need For A Home Get everything from the D-Link DVA-G3672B Wireless G VoIP ADSL2- Modem Router. This all encompassing device includes an integrated high-speed ADSL2/2- modem, 2 VoIP phone connections, 802.11g wireless interface, a USB print server and a 4-port Ethernet switch. This router provides all the functions that your home needs to establish a fast, secure Internet connection, make and receive Internet calls, and wirelessly share the Internet link and USB printer with your family members. Fast ADSL Speed For Clear Internet Phone The DVA-G3672B provides ADSL2- speeds of up to 24Mbps downstream and 1Mbps upstream, suitable for Internet phone calls. It combines the industry’s latest Voice over IP technology with advanced communication features, and is compatible with industry-wise phone services. With two FSX phone ports and a FXO lifeline, this router can connect to two ordinary phone sets for two simultaneous phone calls, and relay phone calls to PSTN automatically in case of a power outage, so your phone line will always be available. Secure Wired And Wireless Connection The DVA-G3672B provides an integrated 802.11g WLAN supporting wireless speeds of up to 54Mbps, four Ethernet ports to connect to four computers through the network cables, and a USB port to hook up a printer and share it among the workgroup. Using a WLAN ON/OFF switch button, users can turn OFF the wireless interface when they don’t need it to save power and to eliminate unnecessary transmission of RF signals in the air. For wireless security, the router provides WEP data encryption and WPA/WPA2, Stateful Packet Inspection (SPI) firewall protection, MAC/IP/Port access filtering access, and day/time parental control. Priority queues and packet prioritization enable your home to experience smooth VoIP and streaming media without concern of traffic congestion.
