- High power and receive sensitivity to bring ultra-long transmission distance
- Stronger penetrability to across multiple walls or floors
- 150Mbps transmit rates to deliver better performance
- One button to easily setup a highly secured wireless link
- Supports Sony PSP X-link for Windows XP
- 150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
- High power and high receive sensitivity deliver performance enhancement compared with normal power
- Signal sustains useable and reliable even across multiple walls or floors
- Easily setup a highly secured wireless connection at a push of QSS button
- WPA/WPA2 encryptions effectively protect your network from outside intrusions
- Supports soft AP mode for Windows XP/Vista, easily making the local network sharing
- Supports Sony PSP X-link for online gaming for Windows XP
- Bundled CD provides easy and hassle-free installation and configuration
- Backward compatible with all IEEE 802.11b/g products
- Desktop design guarantees the stable signal and prettifies your home network
- External detachable antenna allows for better alignment and stronger antenna upgrades
Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback:
- 11n: Up to 150Mbps (dynamic)
- 11g: Up to 54Mbps (dynamic)
- 11b: Up to 11Mbps (dynamic)
Frequency Range: 2.4-2.4835GHz
Wireless Transmit Power:
- <20dBm (EIRP, For countries using CE Standards)
- <27dBm (EIRP, For countries using FCC Standards)
Modulation Type: OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity (without antenna):
- 135M: -68dBm
- 108M: -72dBm
- 81M: -76dBm
- 54M: -76dBm
- 36M: -81dBm
- 12M: -89dBm
- 9M: -91dBm
- 6M: -92dBm
- 11M: -91dBm
- 1M: -94dBm
Work Mode: Ad-Hoc & Infrastructure
- 64/128 bits WEP
- WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System: Windows 7 (32/64bits), Windows Vista (32/64bits), Windows XP (32/64bits), Windows 2000
Interface: Mini USB
Antenna: 5dBi, Detachable, Omni Directional
Certifications: CE, FCC, RoHS
Operating Temperature: 0oC ~40oC
Storage Temperature: -40oC ~70oC
Relative Humidity: 10% ~ 90%, non condensation
Storage Humidity: 5%~90% non-condensing
Dimensions: 90.8 x 60.8 x 24.5 mm

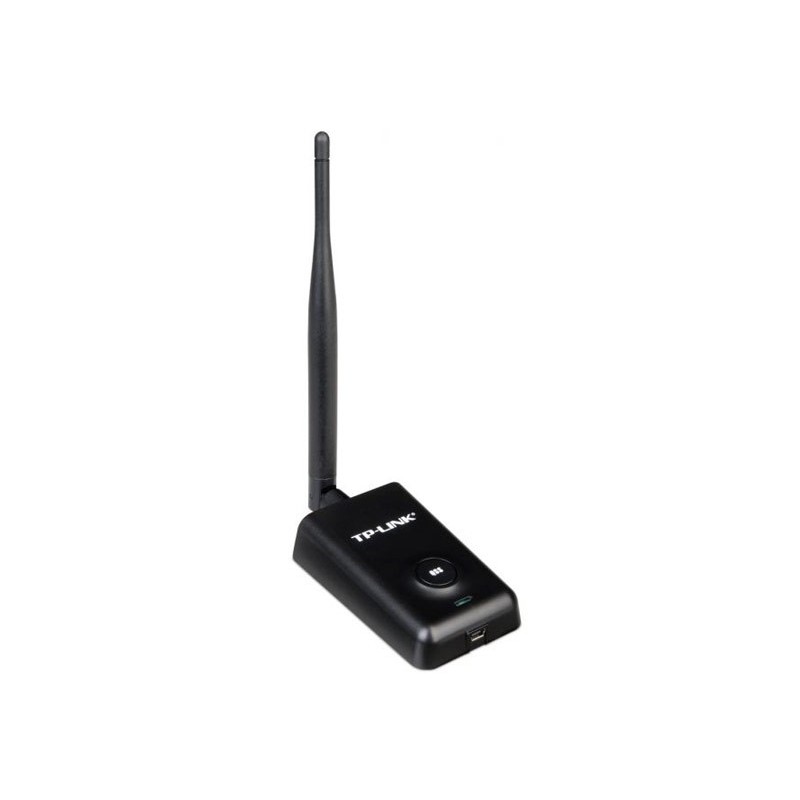

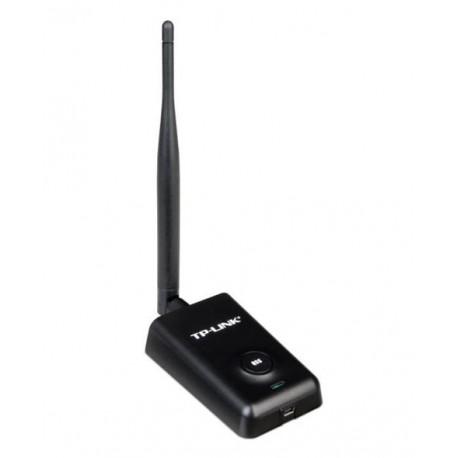

TP-Link TL-WN720ND is a 150Mbps high power wireless adapter with transmission output power up to 500mw which could offer longer distance and further wireless range compared with conventional adapters.
For users who require the maximum performance out of the legacy USB adapter, TL-WN7200ND will definitely fit the bill flawlessly with its 500mw transit power and stronger penetrability, as TL-WN7200ND could effectively ensure that signal doesn’t attenuate seriously and keeps useable and reliable when it passes through multiple walls or floors.
High power for strong penetrability:
With transmission power of up to 500mw, high power USB adapter TL-WN7200ND delivers up to 8 times the range of normal power USB adapter. Moreover, TL-WN7200ND is featured with its incredible and strong penetrability, making that you don’t have to be physically tethered to the walls or floors to access the Internet.
High receive sensitivity for reliable signal:
TL-WN7200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN7200ND means that you don’t have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.
One button for security setup:
Compatible with Wi-Fi Protected Setup (WPS), TL-WN7200ND supports Quick Security Setup that allows users to simply press the QSS button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don’t need to remember any password!
5 dBi external detachable antenna:
External antenna can be rotated and adjusted in different directions to fit various operation environments, brings performance enhancement than internal antenna under normal indoor usage. For even more demanding applications, the antenna can also be replaced with diverse indoor antenna or directional antenna (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.
Desktop-style design & 1.5m USB extension cable:
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN7200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.
Bundled CD for easy operationP:
TL-WN7200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.
