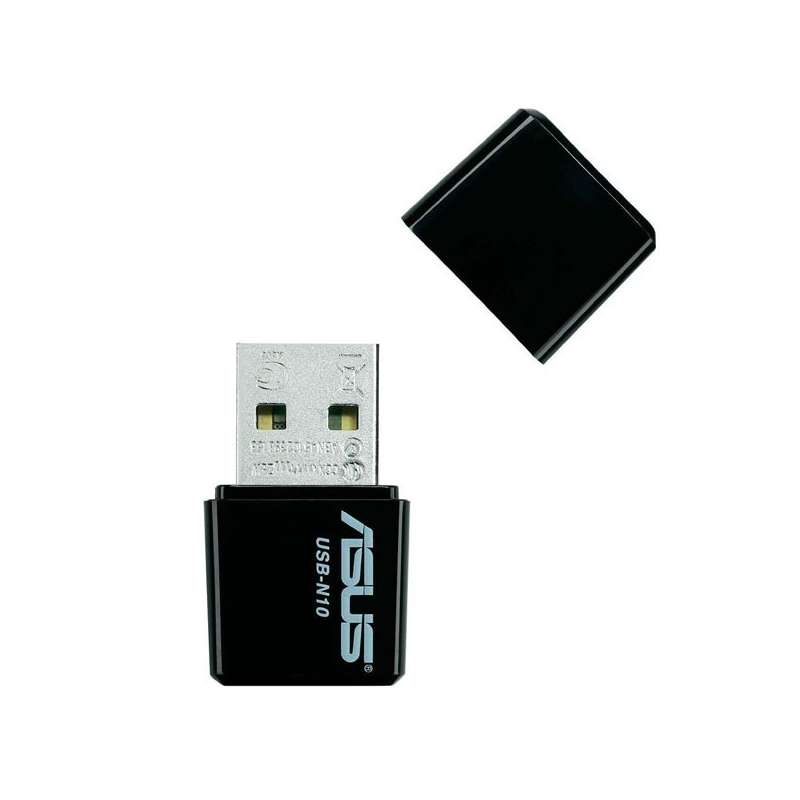

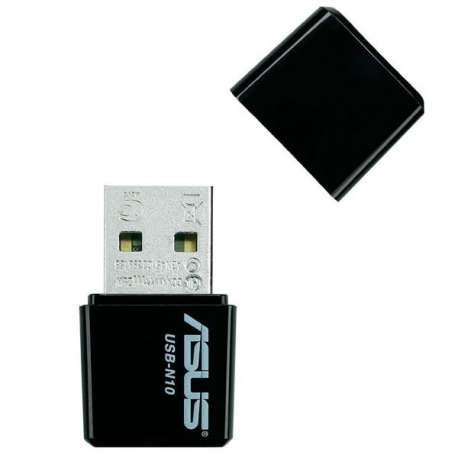

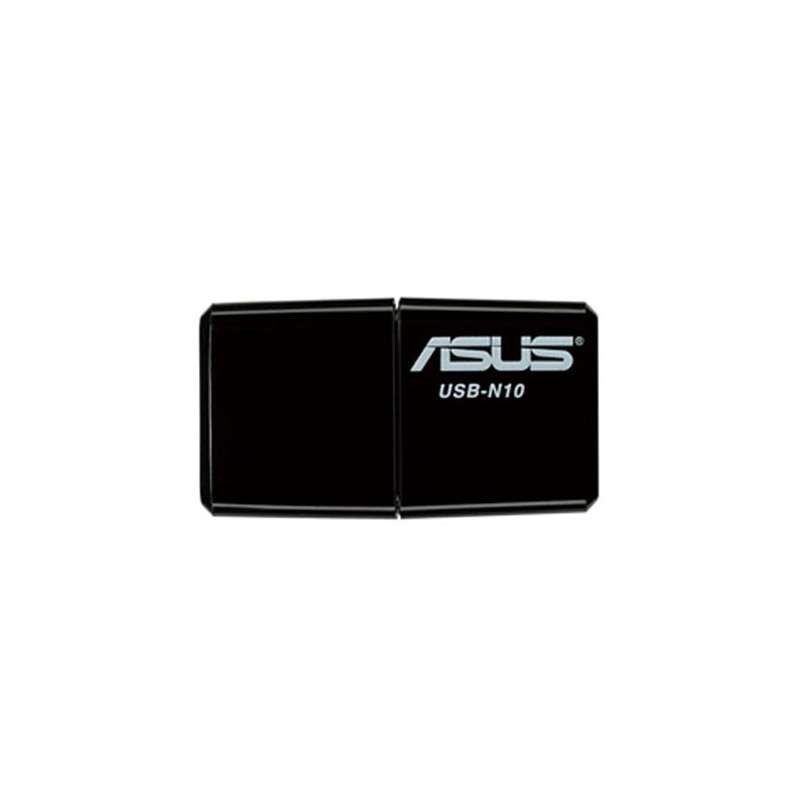

USB-N10‎ به وایرلس اسوس USB مبدل

USB-N10‎ به وایرلس اسوس USB مبدل خانواده ایسوس USB 150Mbps (802.11b/g/g+/n - 2.4Ghz) SuperSpeed Wireless Adapter / 1xPCB Antena / MIMO / Vista 32bit/64bit Features - Excellent Connection: Strong and convenient USB connection for fast downloads, rapid file transfers, and low-latency media streaming - PSP XLink Kai Support: Play system games with PSP users worldwide via the internet - EZ WPS: Improve Wi-Fi security with easy WPS Wizard - Support the newest Window 7 and Mac 10.6 Operating Systems Specifications Network Standard: IEEE802.11b, IEEE802.11g, IEEE802.11n Interface: USB2.0 Antenna: 2 x Internal Antenna (3D enhanced MIFA antenna on USB connector ). Operating Frequency: 2.4GHz Operation Channel: 11 for N. America, 13 Europe (ETSI), 14 Japan Data Rate: - 802.11n：Tx: 150Mbps (Max) / Rx: 150Mbps (Max) - 802.11g：54/48/36/24/18/12/9/6Mbps - 802.11b：11/5.5/2/1Mbps Output Power: - 11b 17 +/- 1 dBm - 11g 15 +/- 1 dBm@54Mbps - 11n 13 +/- 1 dBm (14.5dBm) LED Indicator: OFF: All others states ON: Radio On and Associated, WPS Associating Blink: Radio On and Scanning Flash: Radio On and Associated and TX/RX Data Modulation: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK Range: Up to 150m Management: Xlink Kai( Win XP only) Utilities: Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature. WPS Wizard: High-speed wireless network is just a few clicks away Receiver Sensitivity: - -84 dBm @11 Mbps - -70 dBm @54 Mbps - -67 dBm @64-QAM, 20MHz channel spacing - -64 dBm @64-QAM, 40MHz channel spacing Certifications: CE, FCC, IDA, IC, C-Tick, NCC, GOST Dimensions (LxWxH): 30x17x8.5mm Environmental Specification: Temperature: 0 ~ 40° C ambient Storage Temperature: -10 ~ 70 ° C ambient Humidity: 5 ~ 90% and must be non-condensing Package Contents: - USB Wireless Adapter x 1 - Quick start guide x 1 - Support CD x1 Network Architecture Types: Infrastructure and ad-hoc Encryption: 64/128-bit WEP, TKIP, AES, WPA-PSK, WPA2-PSK OS Support: - Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64) - Mac 10.4/10.5/10.6 - Linux: Redhat 9.0 ( Kernel 2.4.20), Ubuntu 9.04 (Kernel 2.6.28-11), Fedora10 (Kernel 2.6.28-11), Ubuntu 8.04( kernel : 2.6.24-24) Descrpition Extremely Compact and Powerful USB-N10 is the smallest wireless USB adapter in the world. Boasting a 3 cm body length, it is easy to carry and takes up little space when attached to a notebook. Compared to most USB Wi-Fi adapters, it is extremely compact and sturdy with its pocket-sized format and strong plug-in design. This small size and strengthened one-piece shape allows a host notebook to be connected to the USB-N10 even when it is placed in a slim carrying case or bag. Thus you can enjoy constant connectivity with the ASUS USB-N10! EZ N First-class Performance The ASUS USB-N10 provides superior wireless performance for your PC compared to legacy wireless 802.11g technology. It uses a best-in-class MIFA antenna to deliver consistent HD quality data streaming and a much wider wireless operating range. In addition to providing better bandwidth and coverage, the 802.11n standard it’ also backward compatible with 11g and 11b networks, ensuring existing networking hardware can be fully utilized. PSP XLink Kai Support Similar to the USB-N13, the USB-N10 delivers PSP XLink connection support. You can play system-link games over the Internet rather than just over your LAN while on-the-move. Breakthrough Antenna Design The wireless USB adapter incorporates an impressive MIFA antenna which is better than PCB and Chip antennas widely used in generic adapters. This integrated antenna and connector design provides a compact form factor that is much smaller than conventional adapters and greatly expands the transmission range. Multiple OS Support - Windows, Mac and Linux USB-N10 allows you to easily enjoy wireless networking over various platforms. It is compatible with common operating systems such as Windows, Linux, Mac, and even the newest Windows 7 OS.
