CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
Chipset | Intel® Z77 |
Memory | 4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
Graphic | Integrated Graphics Processor VGA output support : DVI port - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
Multi-GPU Support | Supports NVIDIA® 4-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *1 |
Expansion Slots | 4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8) *2 2 x PCIe 2.0 x1 |
Storage | Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), white 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3 Marvell® PCIe 9128 controller : 2 x SATA 6Gb/s port(s), navy blue Support Raid 0, 1 ASMedia® PCIe SATA controller : *4 2 x eSATA 6Gb/s port(s), red |
LAN | Intel® 82574L, 2 x Gigabit LAN Controller(s) |
Audio | Realtek® ALC898 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel |
USB Ports | ASMedia® USB 3.0 controller : *5 2 x USB 3.0 port(s) (2 at back panel, blue) Intel® Z77 chipset : *5 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset : 9 x USB 2.0 port(s) (4 at back panel, , 5 at mid-board) |
Workstation Feature | 4 x PCIe x 16 slot(s) Quick Gate: 1 x vertical USB 2.0 on board ASUS SASsaby series Cards support ASUS WS Diag. LED ASUS WS 3-color LED |
Special Features | ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control : SMART DIGI+ : - Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch. - Smart CPU Power Level (Intel® VRD 12.5 Future Power Design)- provides the best digital power saving conditions. ASUS Hybrid Processor - TPU : - Auto Tuning - TurboV - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 20 Phase Power Design (16 -phase for CPU, 4 -phase for iGPU) - Industry leading Digital 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite II - Ai Charger+ - USB Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS SSD Caching - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |

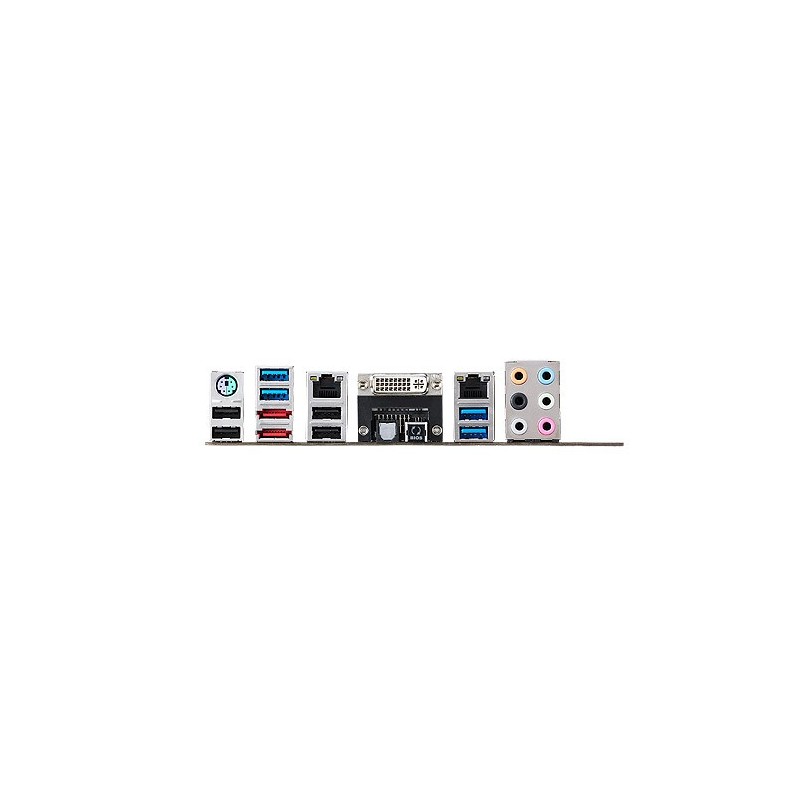

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-I 2 x eSATA 6Gb/s 2 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x Vertical USB 2.0 port(s) 1 x TPM connector(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 4 x Chassis Fan connector(s) (4 -pin) 1 x Optional Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) |
Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) |
BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
Support Disc | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
Operating System | Fedora 16 Windows® 7 32/64-bit Windows® XP 32/64-bit RedHat® Enterprise Linux WS 6.2 32/64-bit Open SUSE 12.1 Ubuntu Desktop 11.1 *7 |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note | *1: LucidLogix Virtu MVP supports Windows 7 operating systems. *2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. *3: Supports on Intel® Core™ processor family with Windows 7 operating systems. *4: These SATA ports are for data hard drivers only. ATAPI devices are not supported. *5-1: Supports ASUS USB 3.0 Boost UASP Mode. *5-2: The USB 3.0 ports only support Windows® 7 or later versions. *6: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system. *7: Linux OS only conduct installation test OK. |
