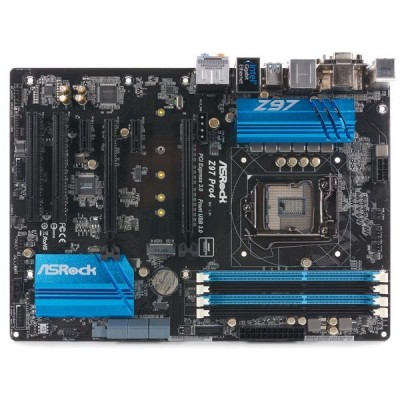

ASRock Z97 Pro4 مادربرد ازراک

ASRock Z97 Pro4 مادربرد ازراک مادربرد کامپیوتر  General Unique Feature ASRock Super Alloy - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - NexFET™ MOSFET - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB ASRock Full Spike Protection ASRock Cloud ASRock APP Shop CPU - Supports 5 th Generation Intel ® Core™ i7/i5/i3/Pentium ® /Celeron ® Processors (Socket 1150) - Supports New 4 th and 4 th Generation Intel ® Xeon ® /Core™ i7/i5/i3/Pentium ® /Celeron ® Processors (Socket 1150) - Digi Power design - 6 Power Phase design - Supports Intel ® Turbo Boost 2.0 Technology - Supports Intel ® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking Chipset - Intel ® Z97 Memory - Dual Channel DDR3 Memory Technology - 4 x DDR3 DIMM Slots - Supports DDR3 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB * - Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment  Audio, Video and Networking Graphics - Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ® InTru™ 3D, Intel ® Clear Video HD Technology, Intel ® Insider™, Intel ® HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 1920x1200 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports * Intel ® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. * * Due to chipset limitation, the Blu-ray playback of Intel ® HD Graphics is only supported under Windows ® 8 / 8 64-bit / 7 / 7 64-bit. * * * Intel ® InTru™ 3D is only supported under Windows ® 8 / 8 64-bit / 7 / 7 64-bit. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Nichicon Fine Gold Series Audio Caps LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel ® I218V - Supports Intel ® Remote Wake Technology - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE  Expansion / Connectivity Slots - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 2 x PCI Express 2.0 x1 Slots - 2 x PCI Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ * If PCIE2 or PCIE4 slot is occupied, PCIE3 slot will run at x2 mode. Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage Technology 13 and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket) * - 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) * Support to be announced. * * The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled. Connector - 1 x COM Port Header - 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x Power LED Header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x PCIe Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector * - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) * Please update to the latest BIOS to support Thunderbolt™ technology. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone  Other Features / Miscellaneous Software and BIOS Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1) Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2_SSD (NGFF) Socket 3 Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - ATX Form Factor - High Density Glass Fabric PCB OS - Microsoft ® Windows ® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
