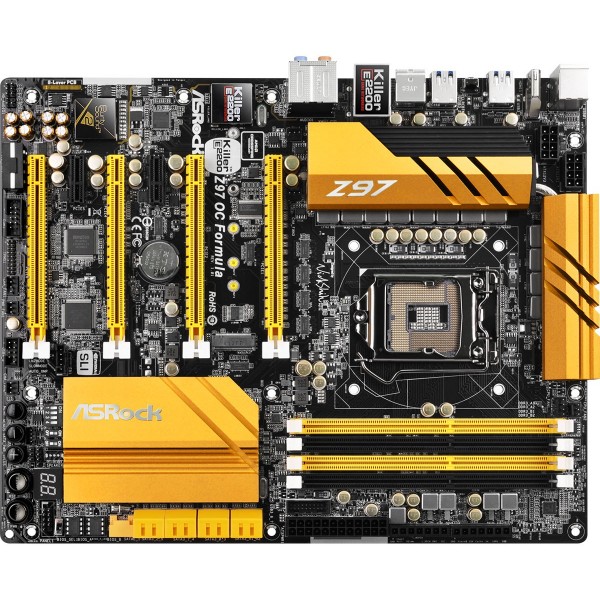

ASRock Z97 OC Formula مادربرد ازراک

ASRock Z97 OC Formula مادربرد ازراک مادربرد کامپیوتر  General OC Formula Kit OC Formula Power Kit - 12 Phase CPU Power design + 4 Phase Memory Power design - Digi Power (CPU and Memory) - Dual-Stack MOSFET (DSM) - Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC) - Jumbo V OC Formula Connector Kit - Hi-Density Power Connector (8 pin) - 15μ Gold Contact (CPU socket, memory sockets and PCIE x16 slots) OC Formula Cooling Kit - 8 Layer PCB - 4 x 2oz copper OC Formula Monitor Kit - Multi Thermal Sensor Unique Feature ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - NexFET™ MOSFET - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - Sapphire Black PCB ASRock HDD Saver Technology ASRock Full Spike Protection ASRock Conformal Coating ASRock Cloud ASRock APP Shop CPU - Supports 5 th Generation Intel ® Core™ i7/i5/i3/Pentium ® /Celeron ® Processors (Socket 1150) - Supports New 4 th and 4 th Generation Intel ® Xeon ® /Core™ i7/i5/i3/Pentium ® /Celeron ® Processors (Socket 1150) - Digi Power design - 12 Power Phase design - Supports Intel ® Turbo Boost 2.0 Technology - Supports Intel ® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking Chipset - Intel ® Z97 Memory - Dual Channel DDR3 Memory Technology - 4 x DDR3 DIMM Slots - Supports DDR3 3400+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB * - Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment  Audio, Video and Networking Graphics - Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ® InTru™ 3D, Intel ® Clear Video HD Technology, Intel ® Insider™, Intel ® HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port * Intel ® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. * * Due to chipset limitation, the Blu-ray playback of Intel ® HD Graphics is only supported under Windows ® 8 / 8 64-bit / 7 / 7 64-bit. * * * Intel ® InTru™ 3D is only supported under Windows ® 8 / 8 64-bit / 7 / 7 64-bit. Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection (ASRock Full Spike Protection) - Supports Purity Sound™ 2 - Nichicon Fine Gold Series Audio Caps - 115dB SNR DAC with differential amplifier - TI ® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) - Direct Drive Technology - EMI shielding cover - PCB isolate shielding - Supports DTS Connect LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Qualcomm ® Atheros ® Killer™ E2200 Series - Supports Qualcomm ® Atheros ® Security Wake On Internet Technology - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports Energy Efficient Ethernet 802.3az - Supports PXE  Expansion / Connectivity Slots - 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE4)) - 1 x PCI Express 2.0 x16 Slot (PCIE6: x4 mode) - 2 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA ® Quad SLI™ and SLI™ Storage - 6 x SATA3 6.0 Gb/s Connectors by Intel ® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage Technology 13 and Intel ® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket) - 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) * Support to be announced. * * The M.2 Socket, SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled. Connector - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED header - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) - 4 x Chassis Fan Connectors (1 x 4-pin, 3 x 3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x HDD Saver Connector - 1 x PCIe Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector * - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x Power Switch with LED - 1 x Reset Switch with LED - V-Probe™: 2 x 7-set of onboard voltage measurement points laid - Rapid OC Buttons: +/- buttons to adjust OC frequency - 1 x Menu Button - 1 x PCIe ON/OFF Switch - 1 x Post Status Checker (PSC) - 1 x Slow Mode Switch - 1 x LN2 Mode Switch - 1 x BIOS Selection Switch * Please update to the latest BIOS to support Thunderbolt™ technology. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x USB 2.0 Ports - 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Intel ® Z97) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone  Other Features / Miscellaneous Software and BIOS Software - ASRock Formula Drive - ASRock Disk Health Report - ASRock USB Key - ASRock Fine-Tuning V-Controller - ASRock Timing Configurator - ASRock APP Charger - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock UEFI Guide - ASRock NickShih's OC Profile - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy RAID Installer - ASRock Easy Driver Installer Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), Killer Network Manager Accessories - 1 x ASRock Flexible SLI™ Bridge Connector Cable - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x HDD Saver Cable - 1 x Screw for M.2_SSD (NGFF) Socket 3 Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Multi Thermal Sensor - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages Form Factor - ATX Form Factor - High Density Glass Fabric PCB OS - Microsoft ® Windows ® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
