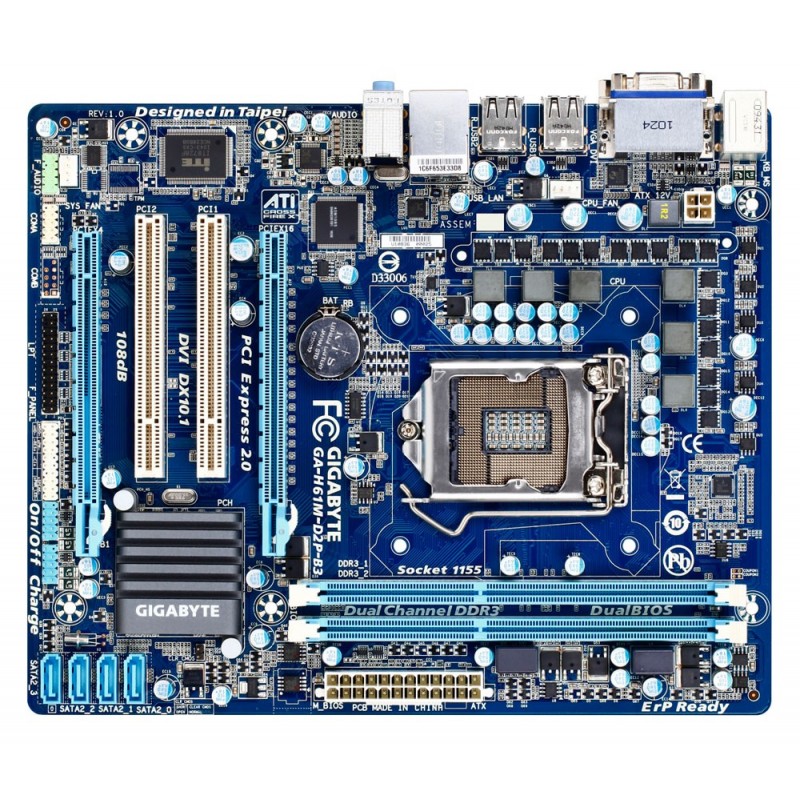

H61M-D2P-B3 مادربرد گیگابایت

H61M-D2P-B3 مادربرد گیگابایت مادربرد کامپیوتر CPU Support for an Intel ® Core™ i7 series processor/Intel ® Core™ i5 series processor/Intel ® Core™ i3 series processor/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel ® H61 Express Chipset Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Graphics Integrated in the Chipset: 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter. Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI slots Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices USB Chipset: Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x parallel port 1 x serial port 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) I/O Controller iTE IT8728 chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install. BIOS 2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Smart 6 ™ Support for Auto Green Support for ON/OFF Charge Support for Cloud OC Support for Q-Share Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft ® Windows 7/Vista/XP Form Factor Micro ATX Form Factor; 24.4cm x 20.0cm
