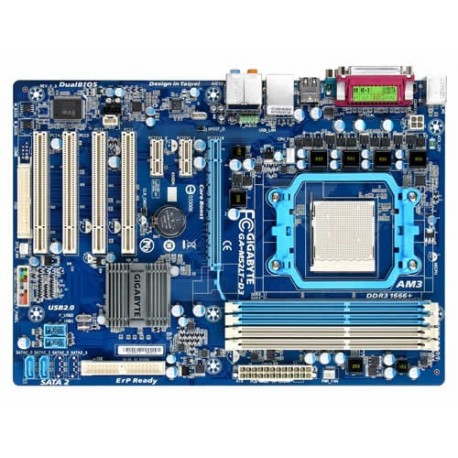

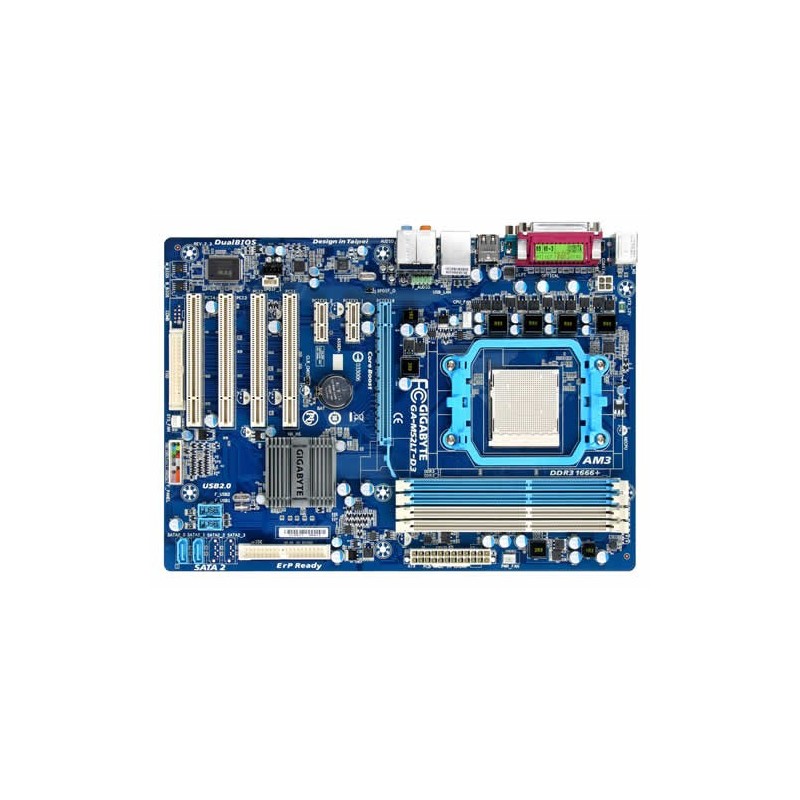

M52LT-D3P مادربرد گیگابایت

M52LT-D3P مادربرد گیگابایت مادربرد کامپیوتر CPU Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor Hyper Transport Bus 2000 MT/s Chipset NVIDIA nForce 520LE chipset Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 1666(OC)/1333/1066 MHz memory modules Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF In/Out Support for CD In LAN RTL 8201EL chip (10/100 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slot 4 x PCI slots Storage Interface Integrated in the chipset: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1 iTE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the chipset Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x coaxial S/PDIF Out 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) I/O Controller IT8720 chip H/W Monitoring System voltage detection System temperature detection CPU / System fan speed detection CPU / System overheating warning CPU / System fan failure warning CPU / system fan speed control (Note 2) BIOS 2 x 8Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 3) Support for Auto Green Support for On/Off Charge Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft Windows 7/Vista/XP Form Factor ATX form factor; 30.5cm x 21.6cm Note (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. (Note 2) Whether the CPU / system fan speed control function is supported will depend on the CPU cooler you install. (Note 3) Available functions in EasyTune may differ by motherboard model.
