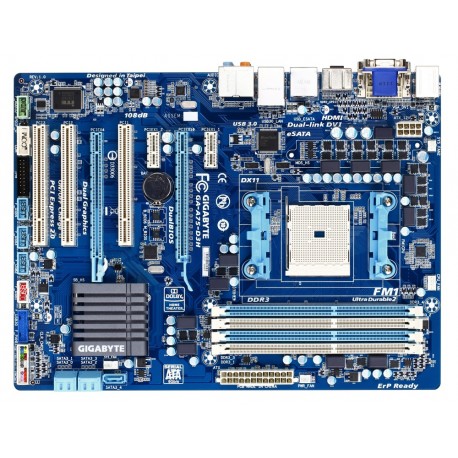

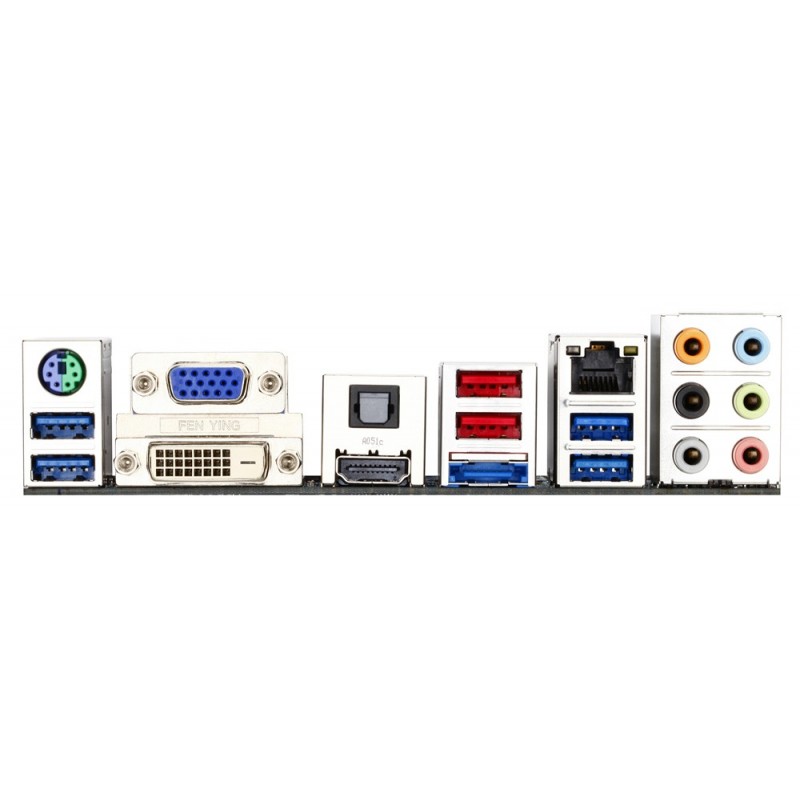

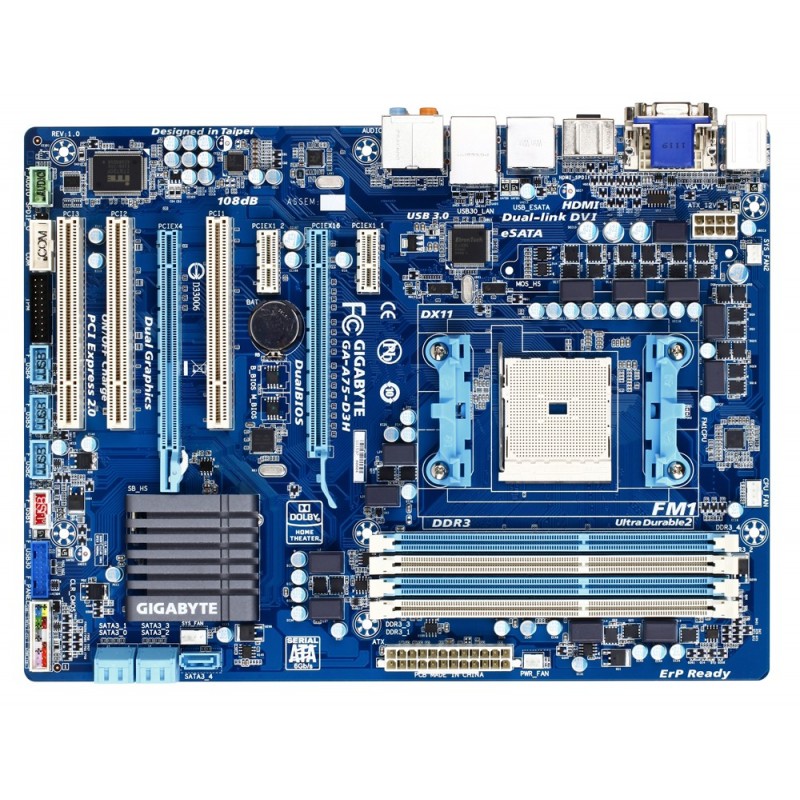

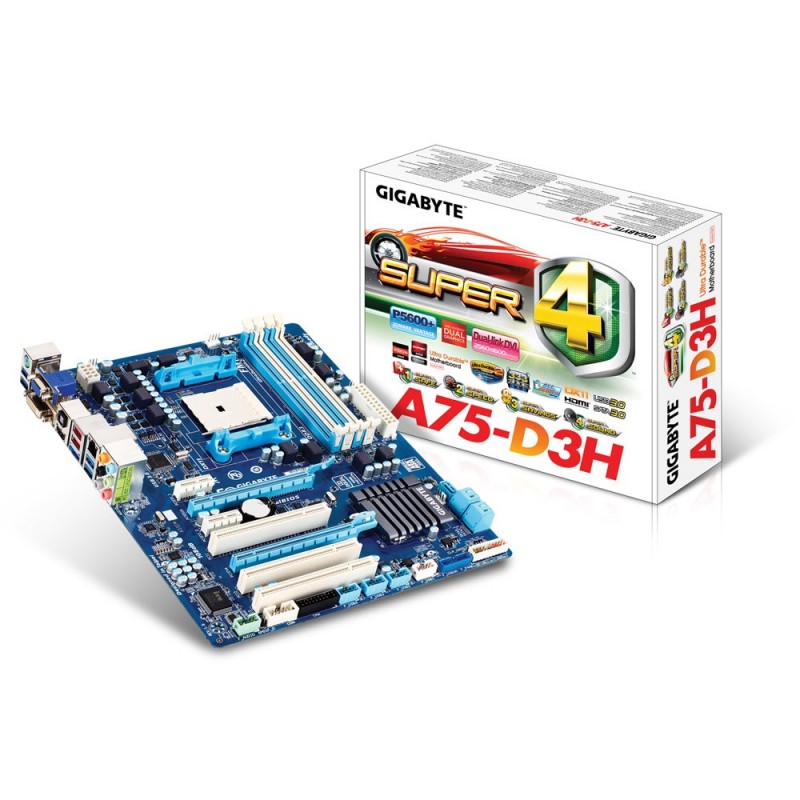

A75-D3H مادربرد گیگابایت مادربرد کامپیوتر APU FM1 Socket: AMD A series & E2 series processors (Please refer "CPU Support List" for more information.) Chipset AMD A75 chipset Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules (Note 2) (Please refer "Memory Support List" for more information.) Onboard Graphics APU: 1 x D-Sub port (Note 3) 1 x DVI-D port, supporting a maximum resolution of 2560x1600 (Note 3) (Note 4) (Note 5) 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3) (All integrated graphics ports do not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.) Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel Support for Dolby ® Home Theater Support for S/PDIF Out LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 6) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All PCI Express slots conform to the PCI Express 2.0 standard.) 3 x PCI slots Multi-Graphics Technology Support for AMD Dual Graphics technology Only A series APU support AMD Dual Graphics. Support for AMD CrossFireX technology Storage Interface Chipset: 5 x SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices 1 x eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device (Note 7) Support for RAID 0, RAID 1, RAID 10, and JBOD USB Chipset: Up to 10 USB 2.0/1.1 ports (2 ports on the back panel, 8 ports available through the internal USB headers) Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) Etron EJ168 chips: Up to 2 USB 3.0/2.0 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 5 x SATA 6Gb/s connectors 1 x APU fan header 2 x system fan headers 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 4 x USB 2.0/1.1 headers 1 x USB 3.0/2.0 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x optical S/PDIF Out connector 2 x USB 2.0/1.1 ports 4 x USB 3.0/2.0 ports 1 x eSATA 6Gb/s port 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) I/O Controller iTE IT8720 chip H/W Monitoring System voltage detection APU/System temperature detection APU/System/Power fan speed detection APU overheating warning APU/System/Power fan fail warning APU/System fan speed control (Note 8) BIOS 2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b Unique Features Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 9) Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for 3TB+ Unlock Support for Q-Share Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft ® Windows 7/Vista/XP Form Factor ATX Form Factor; 30.5cm x 22.5cm Note (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. (Note 2) The 1866 MHz memory speed is supported only when one or two DDR3 1866 MHz DIMMs are installed. It is not supported when four DIMMs are installed. (Dual channel memory mode must be enabled when installing two DIMMs.) (Note 3) To use the onboard D-Sub, DVI, Display port or HDMI, must install an AMD CPU with integrated graphics. (Note 4) The DVI-D port does not support D-Sub connection by adapter. (Note 5) The resolution of 2560x1600 is supported only when Dual Link DVI mode is enabled. (Note 6) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (Note 7) Actual transfer rate is dependent on the device being connected. (Note 8) Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install. (Note 9) Available functions in EasyTune may differ by motherboard model.
