ASUS-M5A78L/USB3 مادربرد ایسوس

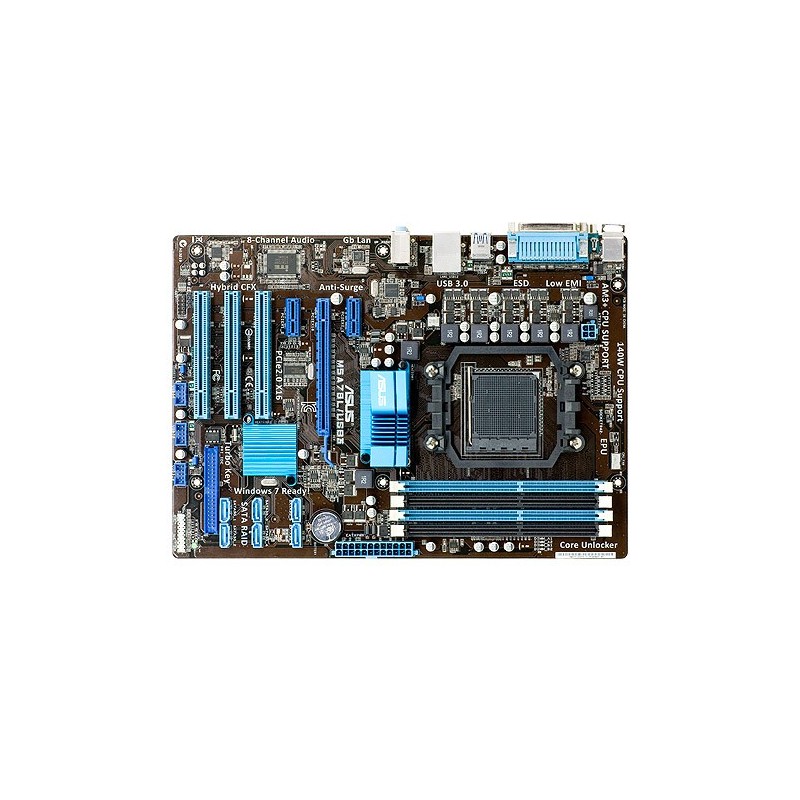

ASUS-M5A78L/USB3 مادربرد ایسوس مادربرد کامپیوتر Specifications CPU AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology * Refer to www.asus.com for CPU support list Chipset AMD 760G (780L)/SB710 Memory 4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz. System Bus Up to 5.2 GT/s HyperTransport™ 3 Expansion Slots 1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 3 x PCI Storage Built-in Controller : 1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue Built-in Controller : 6 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 10, JBOD LAN Realtek®, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC * 1 USB Ports ASMedia® ASM1042 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) AMD SB710 controller : 8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board) Overclocking Features Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Special Features ASUS Power Design : - ASUS EPU-4 Engine Turbo Key Core Unlocker ASUS Exclusive Features : - Ai Charger - Anti-Surge ASUS Quiet Thermal Solution : - ASUS Q-Fan ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x LAN (RJ45) port(s) 2 x USB 3.0 2 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s) Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x IDE connector(s) 6 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) Accessories User's manual I/O Shield 2 x SATA 3Gb/s cable(s) BIOS 16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a Support Disc Drivers ASUS PC Probe II ASUS Update Anti-virus software (OEM version) Form Factor ATX Form Factor 12 inch x 8.5 inch ( 30.5 cm x 21.6 cm ) Note *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
