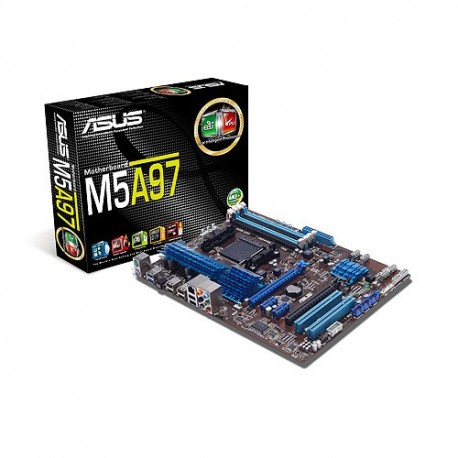

ASUS-M5A97 مادربرد ایسوس

ASUS-M5A97 مادربرد ایسوس مادربرد کامپیوتر Specifications CPU AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology Chipset AMD 970/SB950 Memory 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz. System Bus Up to 4.8 GT/s HyperTransport™ 3 Multi-GPU Support Supports AMD Quad-GPU CrossFireX™ Technology Expansion Slots 1 x PCIe 2.0 x16 (blue) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 2 x PCI Storage AMD SB950 controller : 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 LAN Realtek® 8111E , 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - ASUS Noise Filter - Optical S/PDIF out port(s) at back panel USB Ports ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) AMD SB950 controller : 12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board) Overclocking Features Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Special Features ASUS Dual Intelligent Processors - TPU & EPU : ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU ASUS Power Design : - 4 +2 Phase Power Design ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x LAN (RJ45) port(s) 2 x USB 3.0 6 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x Power Fan connector(s) (1 x 3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2 Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE Support Disc Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) Form Factor ATX Form Factor 12 inch x 9 inch ( 30.5 cm x 22.9 cm )
