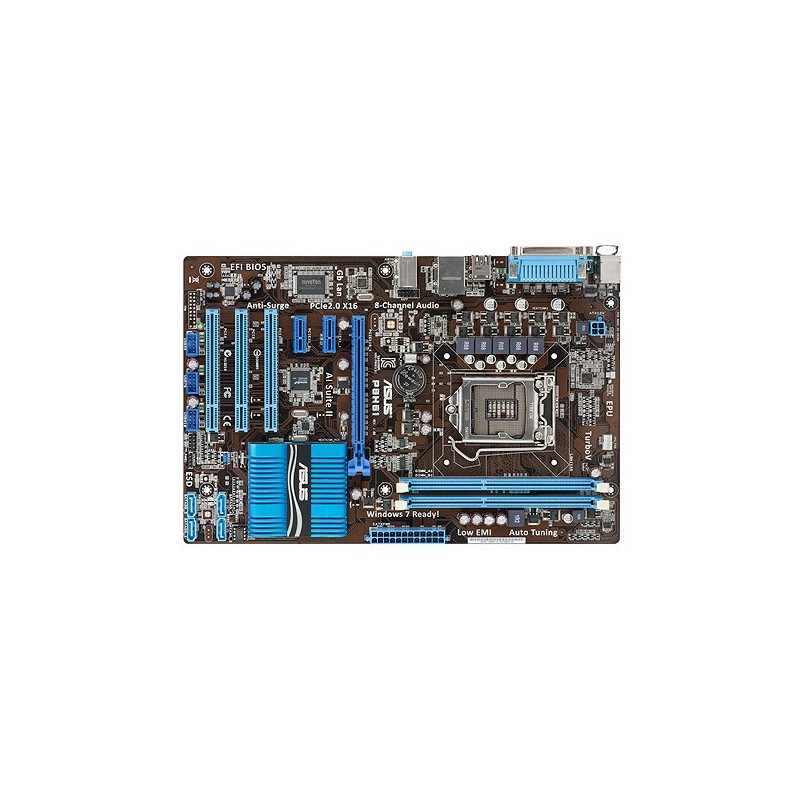

ASUS-P8H61 مادربرد ایسوس

قیمت خرید اینترنتی

ASUS-P8H61 مادربرد ایسوس

Rating: nan/5 (0 votes)

فروش بهترین و با کیفیت ترین ASUS-P8H61 مادربرد ایسوس با قیمت عالی و خرید با تخفیف ویژه در جشنواره ها و با بسته بندی ضد ضربه و ضد آب مخصوص ارسال به سراسر ایران قیمت ، باطری ، ال سی دی ، تاچ ، باتری ، شارژر ، آداپتور ، خرید ، اینترنتی ، آنلاین ، فروش ، فروشگاه ، لپ تاپ ، موبایل ، لب تاب ، نوت بوک ، سایت ، بروز / مادربرد کامپیوتر / مادربرد کامپیوتر به همراه 7 روز مهلت تست تعویض کالا
839
1401-04-06
حداکثر 40 روز گذشته
جنس نو ، کار نکرده
نا موجود
2,850,000 Rial
تخفیف زمان محدود 70,000 Rial
2,780,000 Rial

0 رای   -
ارسال رایگان
ارسال رایگان
ارسال رایگان سراسر ایران
ارسال اکسپرس و فوری
ارسال اکسپرس و فوری
ارسال فوری و حرفه ای

Specifications

CPUIntel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
ChipsetIntel® H61(B3)
Memory2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Expansion Slots1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
3 x PCI
StorageIntel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue
LANRealtek® 8111E
AudioRealtek® ALC 887 8-Channel High Definition Audio CODEC *1
USB PortsIntel® H61(B3) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking FeaturesOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special FeaturesASUS EPU :
- EPU
TurboV
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS32 Mb Flash ROM , EFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2 0a, Multi-language BIOS
ManageabilityWOL by PME,WOR by PME,PXE
Support DiscDrivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form FactorATX Form Factor
12 inch x 8 inch ( 30.5 cm x 20.3 cm )
Note*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
