CPU | Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Turbo Boost Technology |
Chipset | Intel® X58 / ICH10R |
System Bus | Up to 6400 MT/s |
Memory | 6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory Triple channel memory architecture Supports Intel® Extreme Memory Profile (XMP) *Hyper DIMM support is subject to the physical characteristics of individual CPUs. *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts). |
Expansion Slots | 3 x PCIe 2.0 x16 (at x16/x8/x8 or x16/x16/x1 mode) 1 x PCIe x1 2 x PCI |
Multi-GPU Support | Supports NVIDIA® 3-Way SLI™ Technology* Supports ATI® Quad-GPU CrossFireX™ Technology |
Storage | Intel ICH10R controller 6 xSATA 3.0 Gb/s ports Intel Matrix Storage Technology Support RAID 0,1,5,10 Marvell® PCIe SATA 6Gb/s controller* - 2 x SATA 6.0 Gb/s ports * These SATA ports are for data hard drives only. ATAPI devices are not supported. |
LAN | Dual Gigabit LAN controllers 2*Marvell 88E8056® PCIe Gigabit LAN controller featuring AI NET2 |
Audio | Realtek® ALC889 8-Channel High Definition Audio CODEC - DTS Surround Sensation UltraPC - BD audio layer Content Protection - Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking - Coaxial / Optical S/PDIF out ports at back I/O |
IEEE 1394 | VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel) |
USB | NEC® USB 3.0 controller - 2 x USB 3.0/2.0 ports (at back panel) Intel® ICH10R Southbridge - 8 x USB 2.0/1.1 ports (4 ports at midboard; 4 ports at back panel) |
ASUS Unique Features | True USB 3.0 Support True SATA 6Gb/s Support ASUS Xtreme Design ASUS Xtreme Phase - ASUS 16+2 Phase Power Design ASUS Exclusive Overclocking Features - ASUS TurboV ASUS Exclusive Features - MemOK! - ASUS EPU - Express Gate SSD ASUS Quiet Thermal Solution - ASUS Fanless Design: Heat-pipe solution - ASUS Fanless Design: Stack Cool 3+ - ASUS Fan Xpert ASUS Crystal Sound - ASUS Noise Filter ASUS EZ DIY - ASUS Q-Design: Q-Slot - ASUS Q-Shield - ASUS Q-Connector - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS |
Overclocking Features | Intelligent overclocking tools - ASUS TurboV Precision Tweaker 2 - vCore: Adjustable CPU voltage at 0.00625V increment - vChipset 31-step chipset voltage control - vCPU PLL: 36-step reference voltage control - vDRAM Bus: 49-step DRAM voltage control - vNB-PCIe: 65-step chipset-PCIe voltage control SFS (Stepless Frequency Selection) - PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall) |

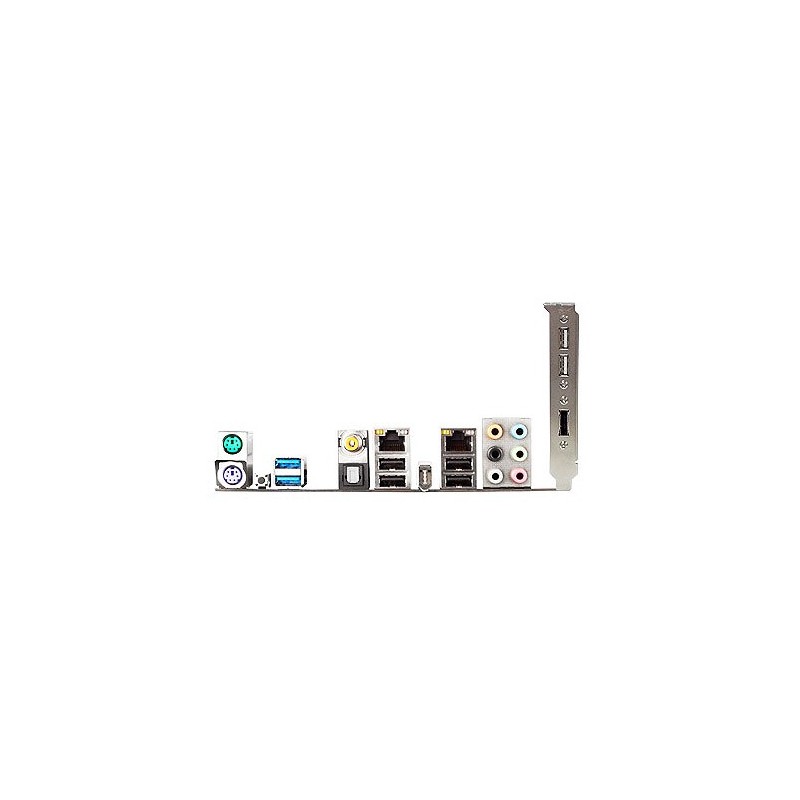

Back Panel I/O Ports | 1 x IEEE 1394a 2 x LAN(RJ45) port(s) 8 -Channel Audio I/O 1 x PS/2 Keyboard (Purple) 1 x PS/2 mouse port (Green) 1 x Clear CMOS button 1 x Coaxial S/PDIF Output 1 x Optical S/PDIF Output 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports |
Internal I/O Connectors | 2 x USB connectors support additional 4 USB 2.0/1.1 ports 1 x IEEE 1394a connector 1 x CPU Fan connector(s) 1 x Power Fan connector(s) System Panel (Q-Connector) 2 x SATA 6.0 Gb/s connectors (gray) 6 x SATA 3.0 Gb/s connectors (blue) 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) Front panel audio connector 1 x S/PDIF Out Header CD audio in 24-pin ATX Power connector 8-pin ATX 12V Power connector 1 x MemOK! Button 1 x Power on switch 1 x Reset switch |
BIOS | 16 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
Manageability | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
Accessories | User's manual 4 x Serial ATA 3.0Gb/s cables 2 x Serial ATA 6.0Gb/s cables ASUS Q-Shield 2 in 1 Q-connector 1 x Optional Fan for water-cooling or passive-cooling only 1 x ASUS 3-Way SLI bridge connector 1 x ASUS SLI bridge connector 1 x 2-port USB 2.0/ eSATA module |
Support Disc | Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
