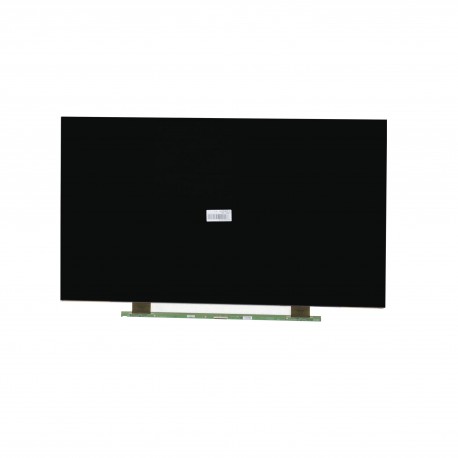

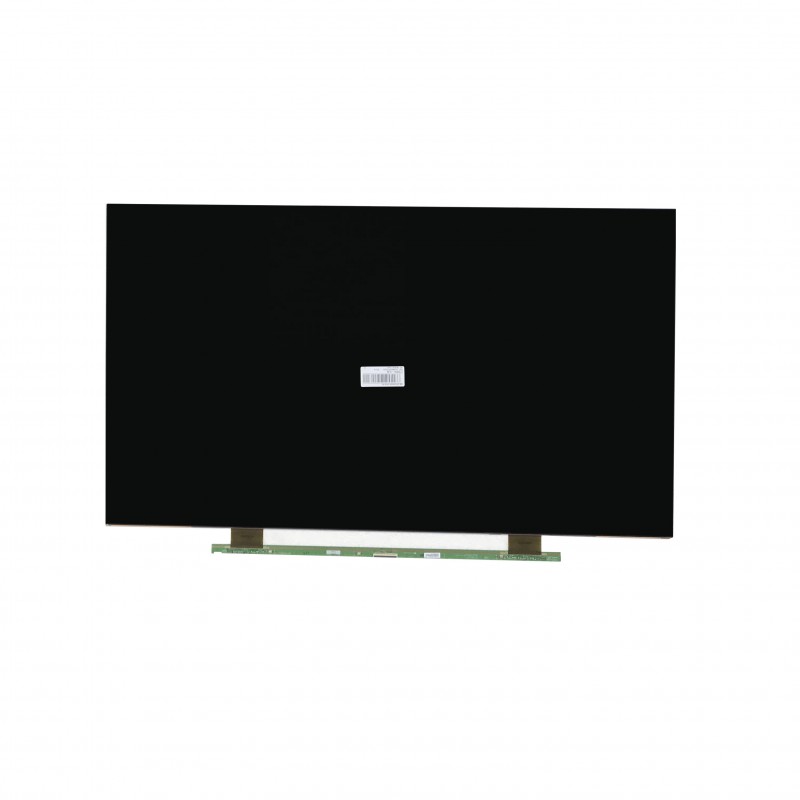

LC320DXJ-SLA9 پنل ال سی دی تلویزیون

LC320DXJ-SLA9 پنل ال سی دی تلویزیون پنل ال سی دی تلویزیون We provide LED TV Mainboards with different configurations for TV assembling or replacement. We also accept customization according to required specifications (based on large quantities).  Every product has accessories. It's according to customer required.   Manufacturer LG Display Model Name LC320DXJ-SLA2 Screen Size 32.0 inch Screen Type CELL ,   a-Si TFT-LCD Pixel Number 1366×768(RGB)   (WXGA) Arrangement RGB Horizontal Stripe Active Area(mm) 697.685 × 392.256 (H×V) Outline(mm) - Luminance 0 cd/m² Contrast Ratio 1200 : 1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Min.)(CR≥10) Response 8/10 (Typ.)(Tr/Td) ms Good View at Symmetry Work Mode IPS, Normally Black, Transmissive Color Depth 16.7M Backlight No B/L Mass - Used for Refresh Rate 60Hz Touchscreen Without Signal Type Mini LVDS , 50 pins Connector Voltage Supply 12.0V (Typ.)(VLCD) Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
