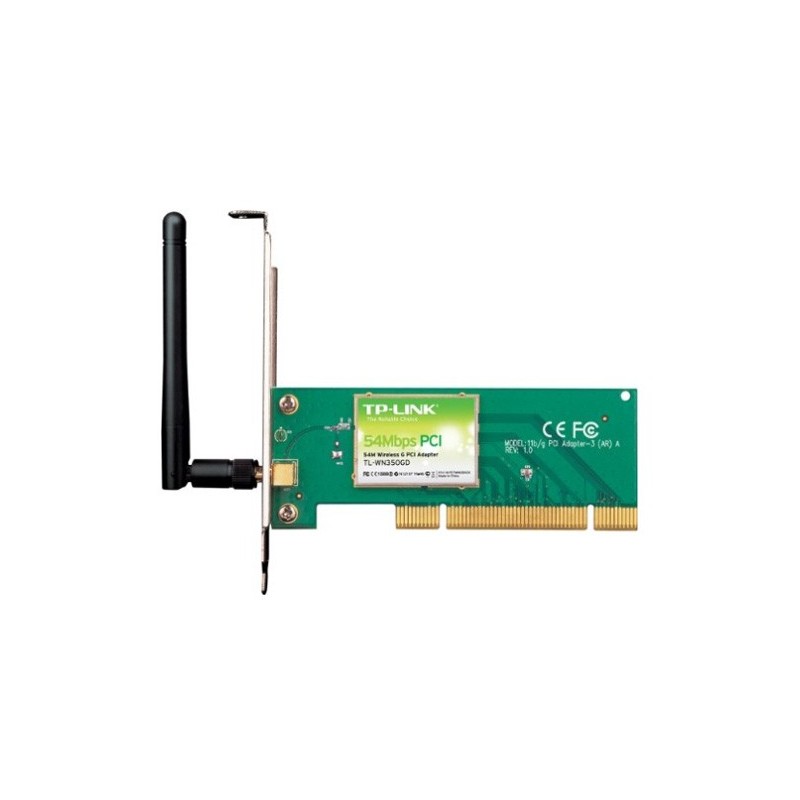

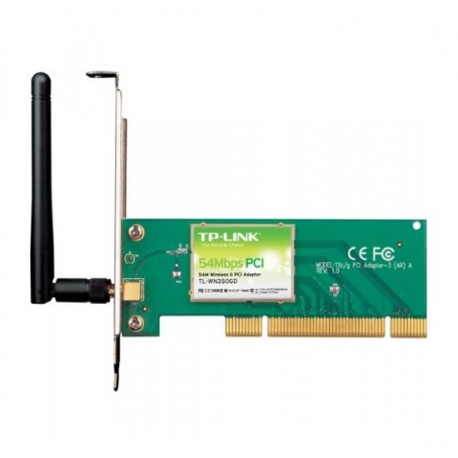

TL-WN350GD‎ کارت شبکه وایرلس تی پی لینک

TL-WN350GD‎ کارت شبکه وایرلس تی پی لینک کارت شبکه تی پی لینک Highlights - Up to 54Mbps and fully Compatible with IEEE 802.11g & 802.11b products - Easily connect to network, to surf internet, play online game, share files - WPA/WPA2 data security, IEEE 802.1x authentication, TKIP/AES encryption, 64/128/152-bit WEP encryption Features - 32-bit PCI Connector - Up to 54Mbps and fully Compatible with IEEE 802.11g & 802.11b products - Supports 64/128/152-bit WEP, complies with 128 bit WPA standard (TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X - Supports 54/ 48/ 36/ 24/ 18/ 12/ 9/ 6/ 11/ 5.5/ 2/ 1 Mbps wireless LAN data transfer rates - Supports Ad-Hoc and Infrastructure modes - Eases to configure and provides monitoring information - Detachable 2dBi antenna for TL-WN350GD - Supports Windows 2000, XP, Vista, 7 Specifications Software Specification: Standards: IEEE 802.11g, IEEE 802.11b Wireless Signal Rates With Automatic Fallback: - 11g: Up to 54Mbps (Dynamic) - 11b: Up to 11Mbps (Dynamic) Frequency Range: 2.4 GHz -2.4835GHz Output  Power: 18dBm Modulation Type: 1M DBPSK, 2M DQPSK, 5.5M/11M CCK, 6M/9M/12M/18M/24M/36M/48M/54M OFDM Receiver Sensitivity: - 54M：-68dBm@10% PER - 11M：-85dBm@8% PER - 6M：-88dBm@10% PER - 1M：-90dBm@8% PER - 256K：-105dBm@8% PER Work Mode: - Ad-Hoc - Infrastructure Wireless Security: - 64/128/152 bit WEP - WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) Support Operating System: Windows 7 (32/64bits), Windows Vista (32/64bits), Windows XP (32/64bits), Windows 2000 *:EIRP-total effective radiated power is 100dBm(100mW), antenna gain will not influence wireless transmit power Hardware Specification: Interface: 32-bit PCI connector Antenna: 2dBi Detachable Omni-directional Antenn (Reverse SMA Connector) Certifications: CE, FCC Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Relative Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~95% non-condensing Dimensions: 133 × 121 × 22 mm Description The TL-WN350GD 54Mbps Wireless Network Mini PCI Adapter are fully compatible with IEEE 802.11b and IEEE 802.11g standard. The auto-sensing capability allows high packet transfer rates of up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. The Wireless Adapter can also interoperate with all the 11Mbps wireless (802.11b) products. Your wireless communications are protected by WPA/WPA2 encryption for high security.
