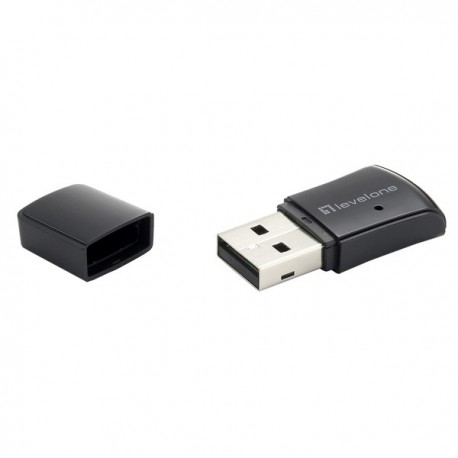

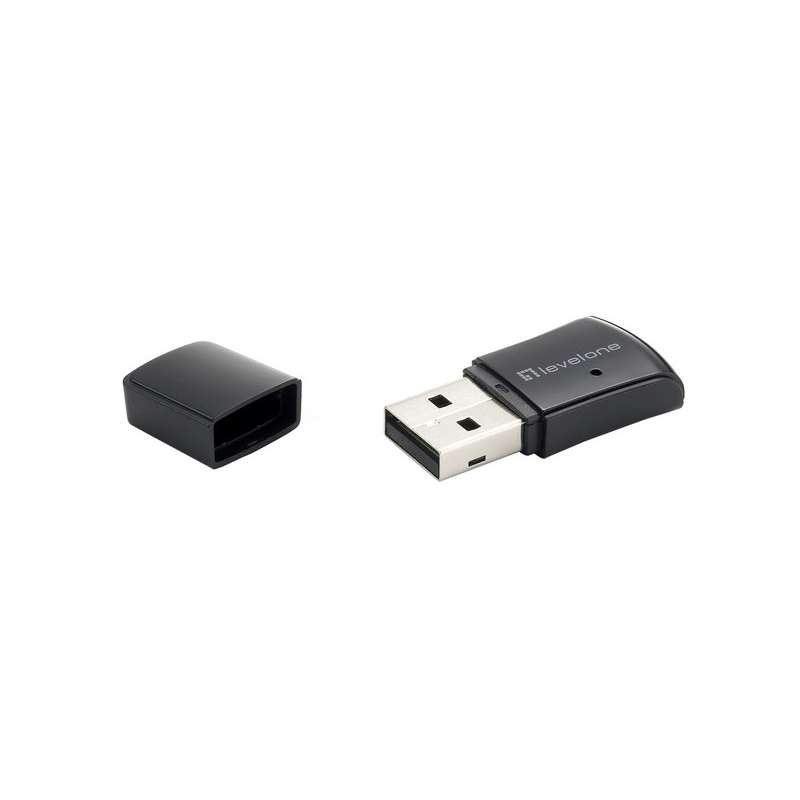

WUA-0606 به وایرلس لول وانUSB مبدل مبدل USB به شبکه Features - High speed wireless connections up to 150Mbps - Compatible with IEEE 802.11n, 802.11b/g standards - Provides USB2.0 Interface - Supports 20MHz/40MHz frequency width - Detects networks and changes transmission rates automatically - Provides 2 modes: Infrastructure and Ad-Hoc - Supports 64/128-bit WEP, WPA and WPA2 encryption for high level security - Supports Wi-Fi Protected Setup(WPS) Configuration and WMM - Quick and Easy Installation - Complies with Windows 7, Vista, XP, 2000 Specifcations General: Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Host Interface: USB Port Type: USB 2.0, 1.1 Radio Operation: Data Transfer Rate: - 802.11n: Up to 150Mbps (40Mhz) - 802.11n: Up to 75Mbps (20Mhz) - 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps - 802.11b: 11, 5.5, 2 and 1 Mbps Modulation: - 802.11n: BPSK, QPSK, 16-QAM, 64-QAM - 802.11g: OFDM - 802.11b: CCK, QPSK, BPSK Media Access Control: CSMA/CA with ACK Frequency Band: 2.4GHz ~ 2.4835GHz Number of Channels: - Channel 1 ~ 11 North America (FCC) - Channel 1 ~ 13 Europe (ETSI) Transmitter Output Power (Typical): - 802.11n: 14 ± 1dBm - 802.11g: 15 ± 1dBm - 802.11b: 16 ± 1dBm Antenna Type: 1 x 2dbi Built-In Antenna Network Security: - WPA - WPA2 - WEP-64/128 bit - TKIP/AES - 802.1x RADIUS - Supports WPS Configuration Device Management: - Windows Utility Software - OS Supported: Windows 2000 / XP / Vista / 7 Physical Specifcations: Temperature: - Operating: 0~50 Degree C - Storage: -40~70 Degree C Humidity: Operating: 10~90% (Non-condensing) LED Indicator: Link Dimensions (LxWxH): 39 x 20 x 8 mm Certifcations: CE, FCC Description Wireless Stream and File Sharing The WUA-0606 offers a simple way to connect your local network devices to the internet for sharing files, videos, music or photos. Product Overview The LevelOne WUA-0606 150Mbps USB Adaptercomplies with the most advanced IEEE802.11n standards, and is also compatible withIEEE802.11 n/b/g wireless devices. It is a Mini, delicate11N Wireless USB network adapter with transmission rate up to 150Mbps and is easy to carry along. Wireless Stream and File SharingThe WUA-0606 offers users a simple way to connect to their local network for quickly accessing and sharing the Internet, transfer files, videos, music or photos Simple and Advanced Security With Wi-Fi Protected Setup (WPS), applying advanced encryption to the wireless signal can be done with a push of a button. For work or entertainment, the WUA-0606 is a reliable and secure solution for any notebook or desktop computer that needs wireless connectivity. It has low power consumption, good signal, long transmission range, and is regarded as a high-performance, cost-effective 11N wireless USB Adapter.
