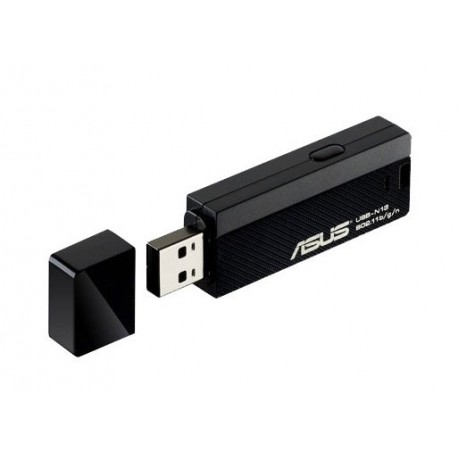

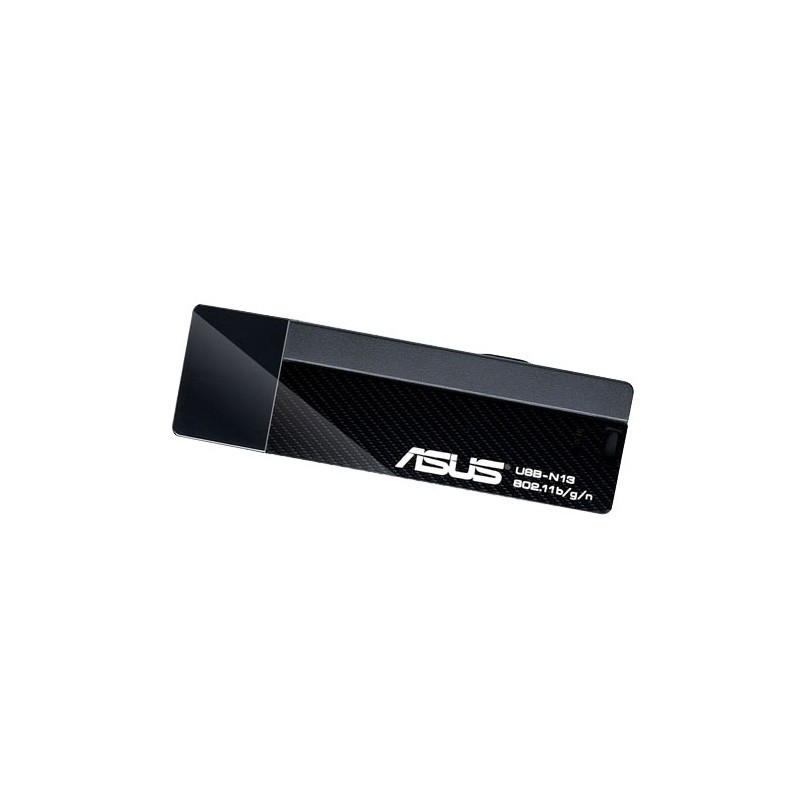

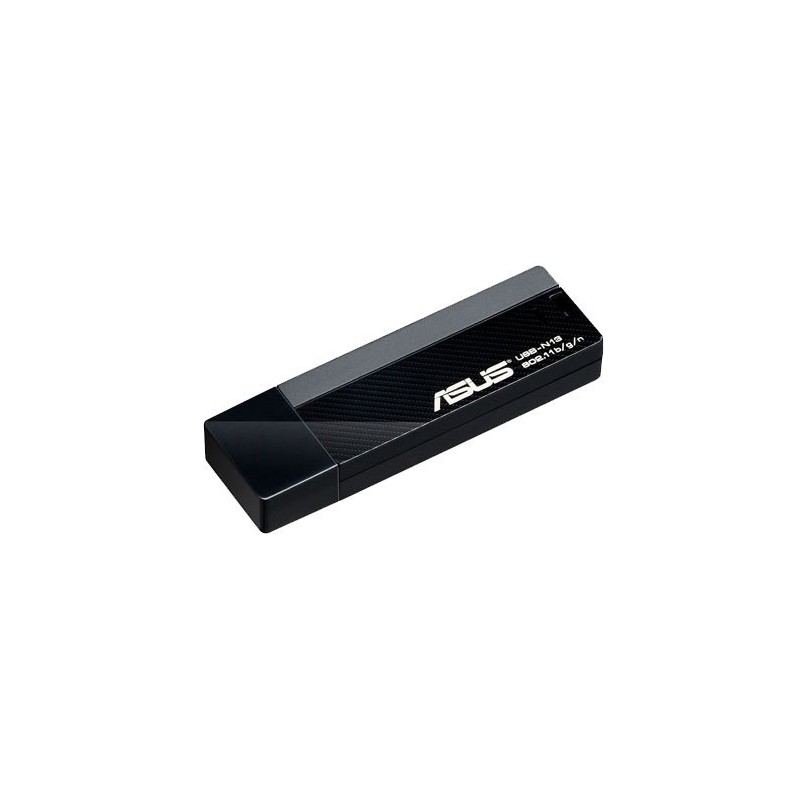

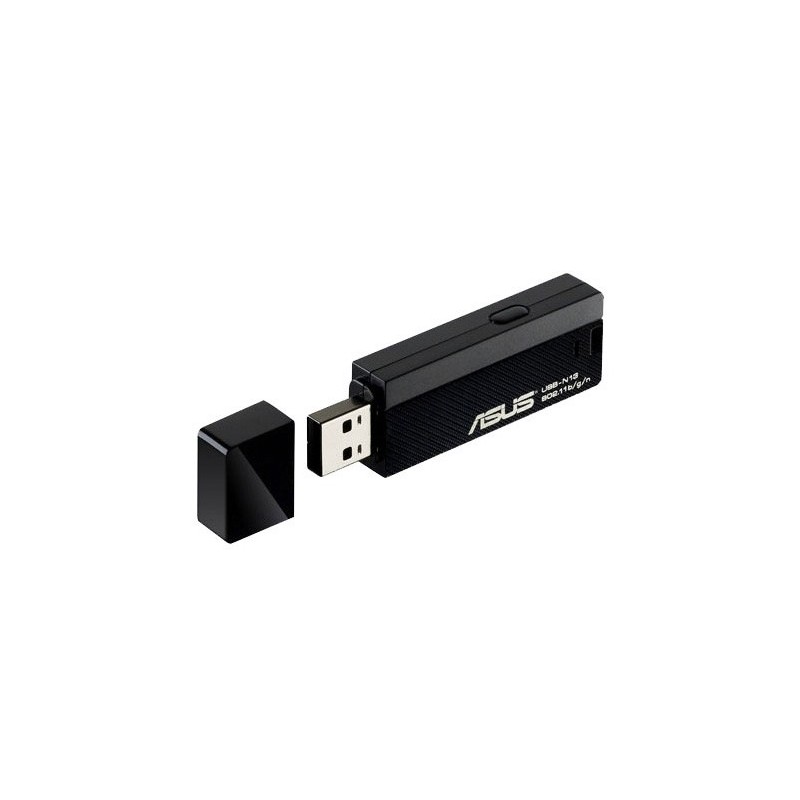

USB-N13 به وایرلس اسوس USB مبدل خانواده ایسوس USB 300Mbps (802.11b/g/g+/n - 2.4Ghz) SuperSpeed Wireless Adapter / 2xPCB Antena / MIMO / Vista 32bit/64bit Features - 300Mb 802.11n WiFi - 2.4Ghz Frequency - USB 2.0 Dongle - WPS Push Button - 2xPCB Antennas Specifications Network Standard: IEEE802.11b, IEEE802.11g, IEEE802.11n Features: WPS Push Button (PBC mode) to launch WPS wizard Interface: USB2.0 Antenna: 2 on-board PCB antenna Operating Frequency: 2.4 ~ 2.5 GHz Operation Channel: 11 for N. America, 13 Europe (ETSI), 14 Japan Data Rate: - 802.11n：Tx: 300Mbps (Max) / Rx: 300Mbps (Max) - 802.11g：54/48/36/24/18/12/9/6Mbps - 802.11b：11/5.5/2/1Mbps Output Power: - b mode: 18dBm - g mode: 15dBm - n mode: 15dBm LED Indicator: Link , Activity & Power Modulation: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK Range: Up to 150m Management: - Software AP (Win XP & Vista only) - Xlink Kai( Win XP & Mac OS only) Utilities: - Mobile control center: Integrate all tools and indicate real time status information on system tray - Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature. - Mobile manager: Support automatic roaming and network reconfiguration between different locations - Site survey: Explore your wireless networking topology through a handy way - WPS Wizard: High-speed wireless network is just a few clicks away Certifications: CE, FCC, IDA, IC, C-Tick, NCC, GOST Physical Specifications: - Dimensions: 70 mm (L) x 22 mm (W) x 10 mm (H) - Weight:12g Environmental Specification: - Operating Temperature: 0°C to 45°C - Storage Temperature: -10° to 70° C (-14°F to 158°F) - Operating Humidity: 15% to 95% RH (Non-condensing) - Storage Humidity: 15% to 95% RH (Non-condensing) Package Contents: - USB Wireless Adapter - Quick start guide - Support CD - Warranty Card Network Architecture Types: Infrastructure and ad-hoc OS Support: - Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64) - Mac 10.3/10.4/10.5 - Linux: Redhat 9.0 (Kernel 2.4.20), Ubuntu 9.04 (Kernel 2.6.28-11), Fedora10 (Kernel: 184.108.40.206-117) Description ASUS Wireless USB Client 300Mbps USB-N13 Wireless N USB adapter: - Secure and Consistent connection: Forceful and well-designed for fast download, file transfer and media streaming - 2-in-1 device for wireless connection sharing: Enable your WLAN adapter to easily turn into a wireless AP with design-in software AP - PSP Xlink Kai Support: Game with worldwide PSP player over the internet - EZ WPS: To configure Wi-Fi setting in steps with WPS hardware push button 300Mbps Pro N - Secure and excellent connection: The ASUS USB-N13’s specially-designed internal antenna provides you consistent transmission and wide coverage. The WPA/WPA2 enterprise encryption enables you to access corporate certificate-based authentication network, ensure that you to communicate under fast and high protected environment. PSP Xlink Kai Support: Xlink Kai is a free software that enables PSP gamers to play system-link games via the Internet instead of via the local area network (LAN). You just enable “PSP Xlink Mode” on ASUS utility, and then wirelessly game with faraway players through Xlink server. Software AP - 2-in-1 device for wireless connection sharing: When you are in business trip, when you like to share your internet access, the USB-N13 build-in software AP enables you to create a small WLAN environment and connect to the internet via ICS (Internet Connection Sharing). Its ACL (Access Control List) and ICS (Internet Connection Sharing) let you easily manage your access authority and quickly turns your PC into a Wireless AP, flexible and convenient. EZ WPS Wi-Fi setup- Simply Insert, Simply Connect: Simply insert USB-N13 into your computer’s USB port and press the WPS button on both the router and USB-N13. Within two steps, a secure and protected wireless connection setting done! Support Multiple OS - Windows, Mac and Linux: The debut USB-N13 supports you multiple OS driver to easily go freedom wireless on most aboveground OS, such as Windows, Linux, Mac, and even the new Windows 7 and Mac 10.6.
