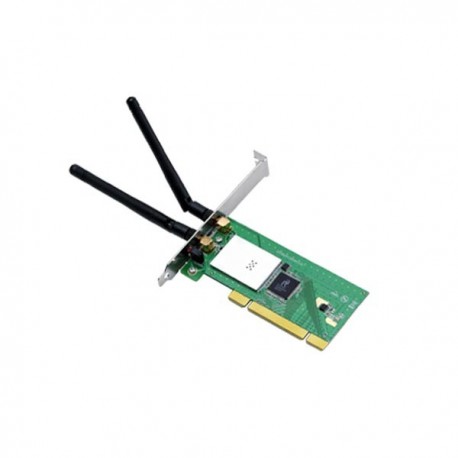

CWP-905 کارت شبکه وایرلس سی نت

CWP-905 کارت شبکه وایرلس سی نت خانواده سی نت Features - Supports data throughput rate up to 300Mbps - Advanced QoS (WMM) for better user experience for audio, video & voice applications - Advanced WPA, 64 / 128-bit WEP and AES / TKIP provide maximum wireless security Specification Standard: - IEEE 802.11b - IEEE 802.11g - IEEE 802.11n Channel: - 1 ~ 11 for FCC - 1 ~ 13 for ETSI Modulation: 11b: DSSS with BPSK, QPSK, CCK 11g: OFDM with BPSK, QPSK, 16QAM, 64QAM 11n: OFDM with BPSK, QPSK, 16QAM, 64QAM Data Rate: 11b: 11/5.5/2/1 Mbps 11g: 54/48/36/24/18/12/9/6 Mbps 11n (20MHz): up to 144Mbps 11n (40MHz): up to 300Mbps Security: - WEP 64/128 - WPA - WPA2 - WPA2 Mixed Antenna: External detachable 2dBi antenna x 2 Transmit Power: 11b: 14~16 dBm @ Normal Temp Range, typical 11g: 12~14 dBm @ Normal Temp Range, typical 11n (20/40MHz): 14~16 dBm @ Normal Temp Range, typical Receive Sensitivity: - 11b: -85 +/-2dBm - 11g: -73 +/-2dBm - 11n (20/40MHz): -63 +/-2dBm LED: - Link x 1 - ACT x 1 Environment : Operating Temperature: 0° ~ 40°C Storage Temperature: -20° ~ 60°C Humidity: 10% ~ 90% Non-condensing Certifications: CE, FCC Dimensions (W x H x D): 110 x 67.16 x 29.2 mm (4.33 x 2.64 x 1.15 inches) Driver Support: - Windows 2000 - Windows XP (32/64bit) - Windows Vista (32/64bit) - Windows 7 (32/64bit) Description The CNet Wireless-N PCI Adapter installs in most Desktops and lets you put your computer almost anywhere in the building, without the cost and hassle of running network cables. The CNet Wireless-N PCI Adapter connects you with 11n networks at an incredible 300Mbps!
