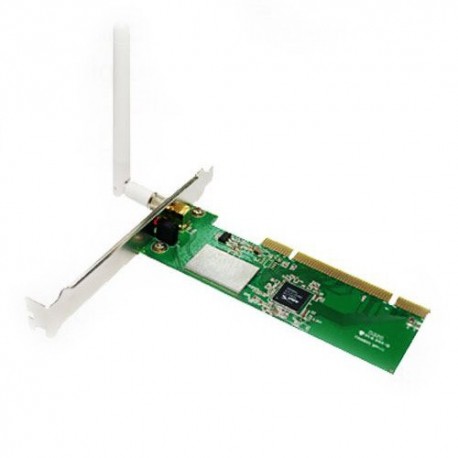

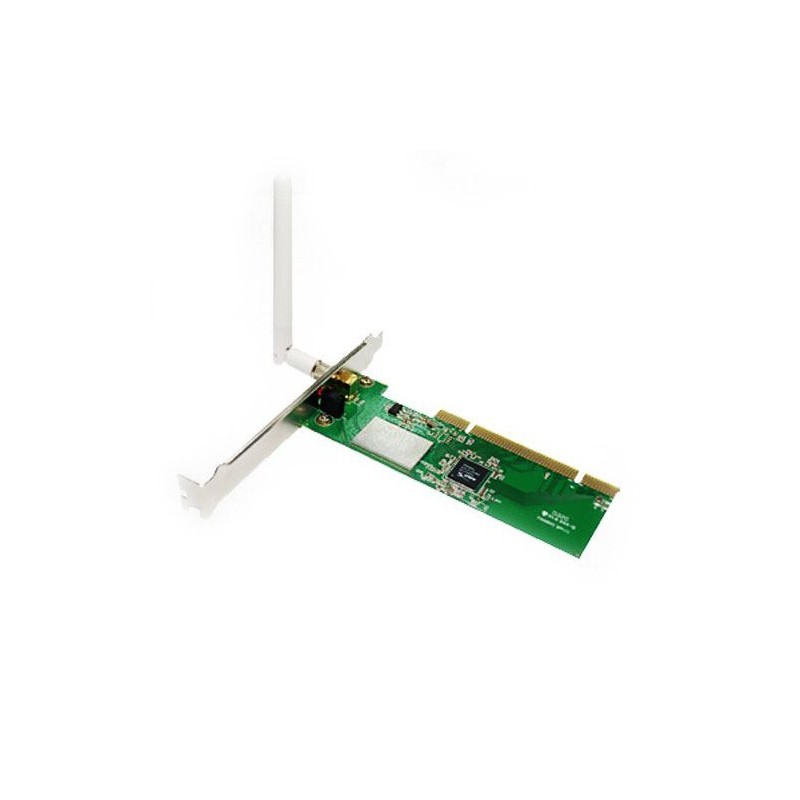

CWP-906‎ کارت شبکه وایرلس سی نت

CWP-906‎ کارت شبکه وایرلس سی نت خانواده سی نت Features - Detachable 2 dBi antenna. - High security protection: 64/128bit WEP WPA WPA2 - High quality Ralink wireless b/g/n solution - 1T1R with 150Mbps PHY rate for both transmit and receiving. - Legacy and High throughput modes - 20MHz/40MHz Bandwidth - Qos-WMM, WMM-PS - Multiple BSSID Support Specifications Standard: IEEE 802.11b/g/n Antenna: External 2 dBi detachable dipole antenna Frequency Band: 2.400GHz ~ 2.484GHz Security: - 64/128bit WEP - WPA(TKIP with IEEE 802.1x) - WPA2(AES with IEEE 802.1x) Data Rate: - IEEE 802.11b: 11, 5.5, 2 and 1 Mbps - IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps; Auto-fallback - IEEE 802.11n: • 20MHz channel: 1Nss: 65Mbps @ 800GI, 72.2Mbps @400GI (Max.) • 40MHz channel: 1Nxx: 135Mbps @ 800GI, 150Mbps @400GI(Max.) Sensitivity: - -95dBm @ 802.11b - -92dBm @ 802.11g - -90dBm@ 802.11n RF Output Power (Typical): - 802.11b: up to 17 ± 1 dBm - 802.11g: up to 16 ± 1 dBm - 802.11n: up to 15 ± 1 dBm Number of operation channel: - 2.412~2.462GHz (Canada, FCC) / 11 Channels - 2.412~2.484GHz (Japan, TELEC) / 14 Channels - 2.412~2.472GHz (Euro, ETSI) / 13 Channels Access Protocol: CSMA/CA QoS enhancement: WMM, WMM-PS Host Interface: PCI interface 2.2 Operation Voltage: 3.3V Dimension (mm): 120 (L) x 53 (W) Operation Temperature: 0°C ~ 55°C ambient temperature Storage Temperature: -20°C ~ 70°C ambient temperature Driver support: Windows® 7 32/64 ,XP 32/64, Vista 32/64, 2k, 98SE, ME Approval: - FCC Part 15 - CE Description The CNet Wireless-N (draft 802.11n) PCI Adapter connects you with 11n networks at an incredible 150Mbps! And for added versatility, CNet CWP-906 is also capable of inter-operating with all the Wireless-G and B products found in homes, businesses, and public wireless hotspots around the country.
