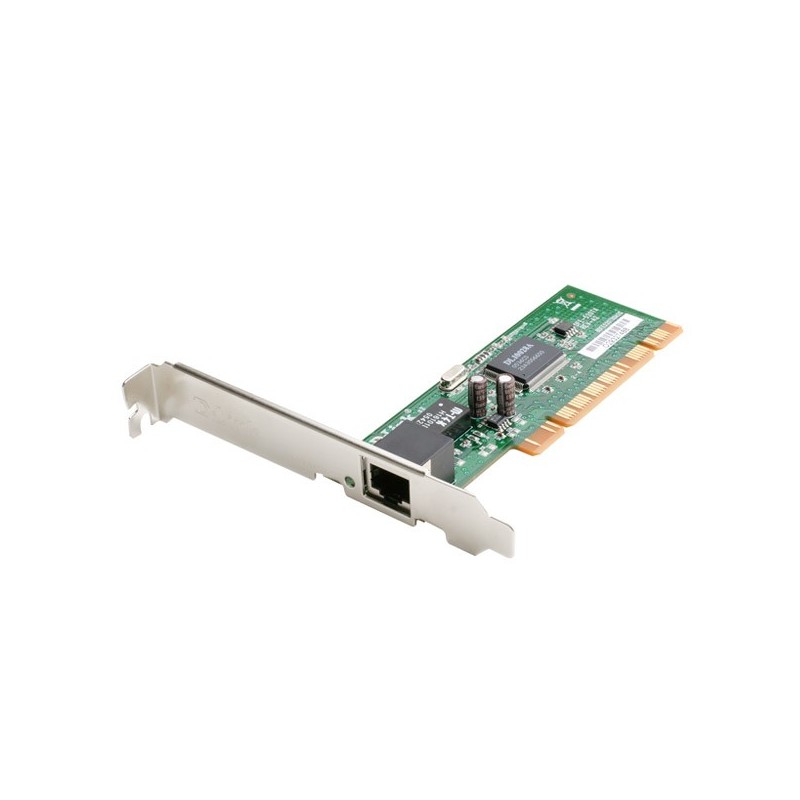

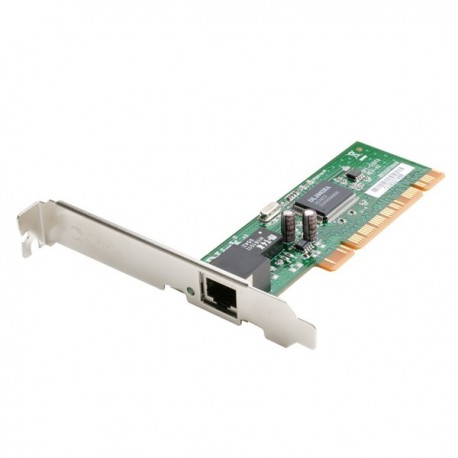

DFE-520TX کارت شبکه دی لینک

DFE-520TX کارت شبکه دی لینک خانواده دی لینک Features - 802.3 10BASE-T/802.3u 100Base-TX standard - Auto-detection of 10Mbps and 100Mbps network speeds - Supports 802.1x function (MD5 only) and 802.3x Flow Control - 32-bit PCI Local Bus Master high-speed operation - Complies with Advanced Configuration and Power - Complies with PCI Power Management v.1.1 - On-board FIFO buffer, no external memory on host required Specifications Standards: - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3 NWay autonegotiation - IEEE 802.3x Flow Control - PCI local bus 2.2 specification - IEEE 802.3 10BASE-T Ethernet Topology: Star Protocol: CSMA/CD Network Data Transfer Rates: - 10BASE-T: • 10Mbps (half-duplex) • 20Mbps (full-duplex) - 100BASE-TX: • 100Mbps (half-duplex) • 200Mbps (full-duplex) • Network Cables - 10BASE-T: • UTP Cat.3, 4, 5 (100 m max.) • EIA/TIA-568 STP (100 m max.) - 100BASE-TX: • UTP Cat. 5 (100 m max.) • EIA/TIA-568 STP (100 m max.) Diagnostic LED Report: - Link - Activity Power Consumption: 0.4 watts max. Dimensions: 120 x 20 mm Weight: 106 g Operating Temperature: 0° to 40° C Storage Temperature: -10° to 70° C Operating Humidity: 10% to 90% RH Emission: - FCC Class B - CE Class B - C-Tick O.S. Driver Support: Microsoft Windows 98 SE,2000,ME, XP Description 10/100M PCI Adapter without Boot Rom and WOL The DFE-520TX is a very low-cost auto-sensing 10/100Mbps dual-speed network card installable in a PC equipped with PCI expansion slots. This card makes extensive use of the single-chip technology and is equipped with an on-board FIFO buffer, providing your computer with an easy and effective connection to an Ethernet network.
