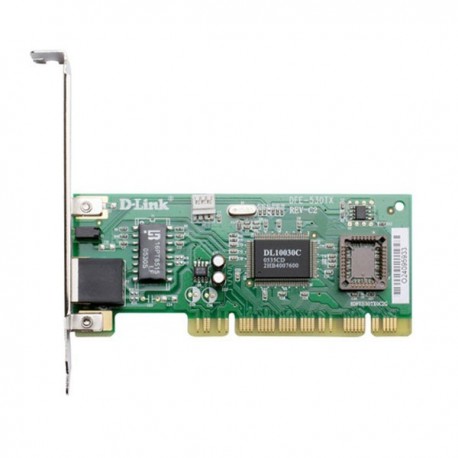

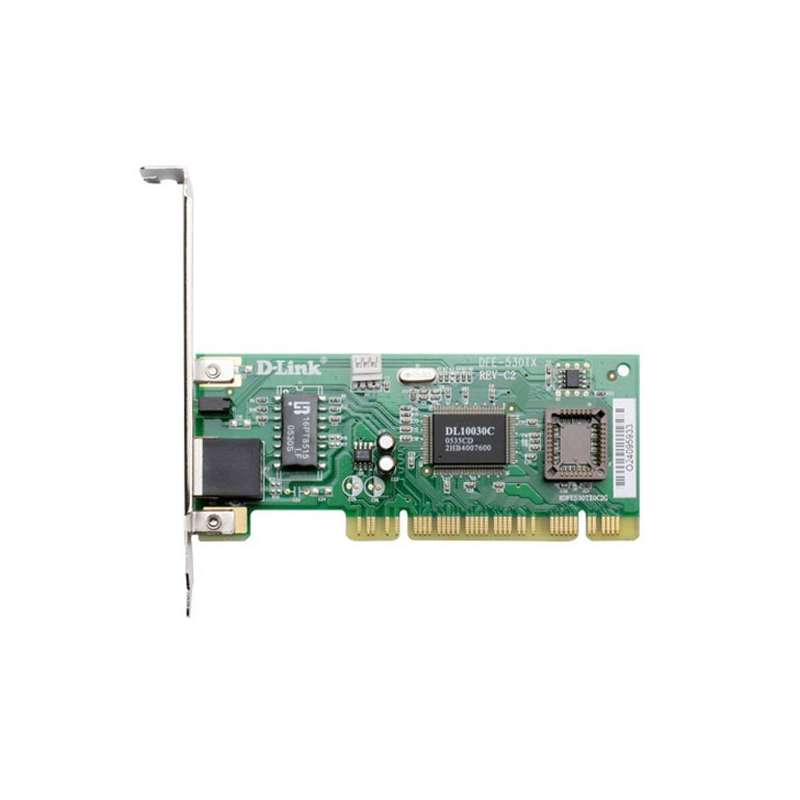

DFE-530TX کارت شبکه دی لینک

DFE-530TX کارت شبکه دی لینک خانواده دی لینک Features - Compatible with Windows 7 32bit and 64bit - 10/100Mbps Auto-sensing - Full/Half-duplex Auto-negotiation - 32-bit Bus Master Data Transfer with PC Host - Wake-On-LAN (WOL) Power Management - Flow Control for Fast, Reliable Data Transmission Specification Standards: ƒƒ- IEEE 802.3u 100BASE-TX Fast Ethernet ƒƒ- IEEE 802.3 10BASE-T Ethernet ƒƒ- ANSI/IEEE 802.3 NWay auto-negotiation ƒƒ- PCI local bus 2.2 specifications Topology: Star Protocol: CSMA/CD Network Data Transfer Rate: - ƒƒ100BASE-TX: 100 Mbps ƒƒ- 10BASE-1: 10 Mbps Full Duplex: ƒƒ- Fast Ethernet: 200 Mbps ƒƒ- Ethernet: 20 Mbps Network Cables: ƒƒ- 10BASE-T: 2-pair UTP Cat. 3, 4, 5 (100 m) EIA/TIA-568 100-ohm shielded twistedpair (STP) (100 m) ƒƒ- 100BASE-TX: 2-pair UTP Cat. 5 (100 m) EIA/TIA-568 100-ohm shielded twistedpair (STP) (100 m) Diagnostic LED Report: ƒƒ- Link/Act ƒƒ- 10/100 Mbps speed Power Consumption: 0.4 watts Dimensions (L x W): 120 x 51 mm Operating Temperature: 0˚ to 40˚C (32˚ to 104˚F) Storage Temperature: -25˚ to 55˚C (-13˚ to 131˚F) Operating Humidity: 5% to 95% (non-condensing) Emission: ƒ- ƒFCC Class B ƒƒ- BSMI Class B ƒƒ- CE Class B ƒƒ- C-Tick Boot rom size: 64 Kb Drivers SUpported: ƒƒ- Microsoft Windows 7 32/64-bit Edition ƒƒ- Microsoft Windows Vista 32/64-bit Edition ƒƒ- Microsoft Windows Server 2008 32/64-bit Edition ƒƒ- Microsoft Windows Server 2003 - ƒƒMicrosoft Windows XP 32/64-bit Edition - ƒƒMicrosoft Windows ME - ƒƒMicrosoft Windows 2000 - ƒƒMicrosoft Windows 98 - ƒƒMicrosoft Windows NT 4.0 - ƒƒNovell NetWare 5.x, 6.x - ƒƒDOS ODI - ƒƒNDIS drivers - ƒƒPacket driver - ƒƒLinux Kernel 2.4.x, 2.6.x Optional boot rom: DFE-534R3: RPL boot ROM Description D-Link's DFE-530TX Fast Ethernet adapter is a high-performance auto-sensing 10/100Mbps dual-speed adapter for the PCI bus. Installable in a Pentium or Pentium Pro PC equipped with PCI expansion slots, this adapter turns a desktop into a high- bandwidth graphic/multimedia workstation or a power server running at full-duplex speed. Powerful Performance The adapter operates in the 32-bit Bus Master mode, delivering throughputs at multi-megabits per second with little stress on the host's CPU. Supporting PCI clock speeds independently of the network clock, it transfers data directly to/from the host's memory, by-passing the CPU to alleviate the host's workload. Easy Migration The adapter allows users to migrate from Ethernet to Fast Ethernet in easy steps. 10BASE-T users can upgrade to 100BASE-TX anytime without changing driver software or network cables. Network Security Network administrators can install optional boot ROMs on the adapters to implement network security. Diskless workstations equipped with these ROMs can remote boot from NetWare or Windows NT servers and access authorized data. Auto-sensing 10/100Mbps Interface The adapter's single connector connects to either 10BASE-T Ethernet or 100BASE-TX Fast Ethernet completely without any need to set configuration. It detects the connected hub's or switch's capability and auto-negotiates to use the highest available speed. Full Duplex Support Full/half duplex operation is auto-detected in both 10BASE-T and 100BASE-TX modes. When connected to a switch in full duplex, the network speed can be increased to 200Mbps, making the adapter an ideal NIC for high-speed server deployment. Comprehensive Driver Support The adapter supports all major network operating systems, including NetWare, Windows and Linux.
