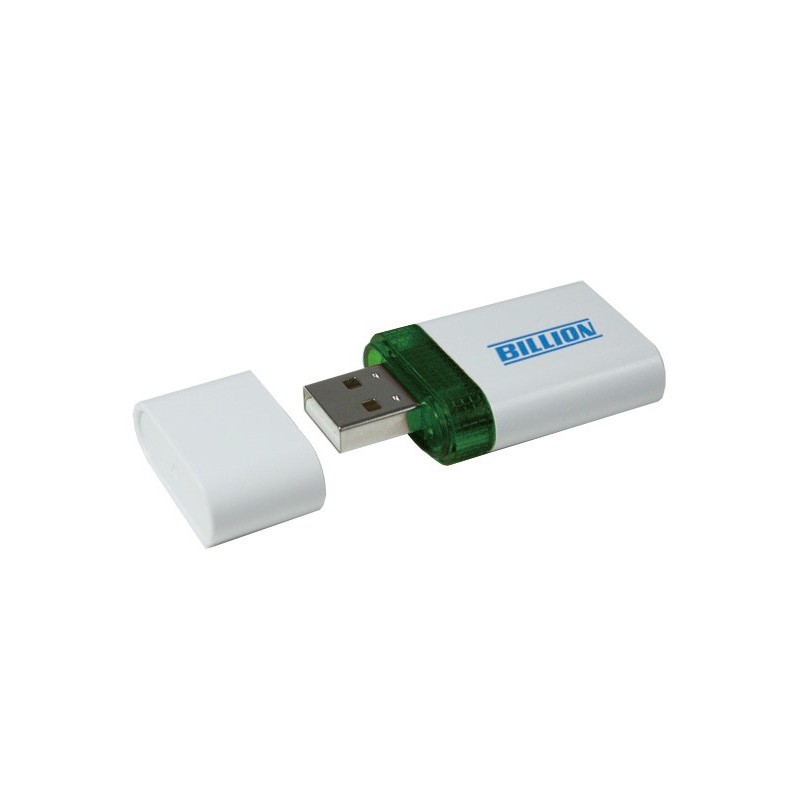

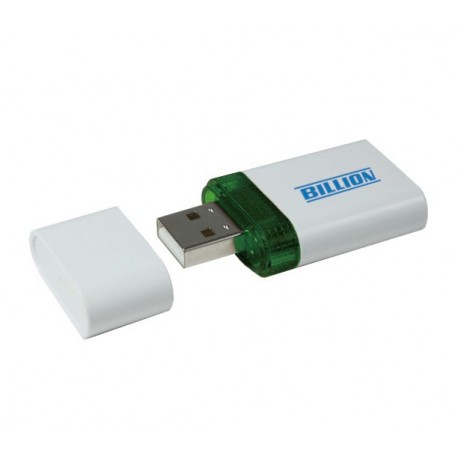

Bipac 3011N به وایرلس بیلیونUSB مبدل

Bipac 3011N به وایرلس بیلیونUSB مبدل خانواده بیلیون Specifications Standards: - IEEE 802.11g / b - IEEE 802.11n - IEEE 802.11h Interface: - Complies with USB 2.0 A-Type - Supports full-speed (12Mbps) and high-speed (480Mbps) Frequency Band: 2.400GHz ~ 2.4835GH Modulations: - IEEE 802.11b: DSSS (CCK / DQPSK / DBPSK) - IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) - IEEE802.11n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) Data Rates: - IEEE 802.11b: 11, 5.5, 2 and 1Mbps; Auto-fallback - IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps; Auto-fallback - IEEE 802.11n (20MHz): 75 Mbps (T) / 150 Mbps (R) - IEEE 802.11n (40MHz): 150 Mbps (T) / 300 Mbps (R) Access Protocol: CSMA/CA Wireless Security: - 64/128bit WEP - WPA (TKIP with IEEE 802.1x) - WPA2 (AES with IEEE 802.1x) - WPS (Wi-Fi Protected Setup) for easy setup Transmitting Power: - 802.11b：up to 17 ± 1 dBm - 802.11g：up to 15 ± 1 dBm - 802.11n：up to 14 ± 1 dBm Operating Mode: Ad-hoc mode / infrastructure mode Number of Operational channels: - U.S. 1-11 - Japan 1-13, 14 - Elsewhere Worldwide 1-13 Quality of Service (QoS) Enhancement: WMM (Wi-Fi Multimedia) function for multi-media data bandwidth requirement. Supported Operating Systems: - Mac 10.4/10.5 - Linux - Windows 2000 / XP / Vista / 7 Receiver Sensitivity: - 802.11b -85dBm - 802.11g -78dBm - 802.11n -70dBm Antenna: Internal two antennas with one TX and two RX LED Display: Link/ Act Dimensions (LxWxH): 49 x 26 x 10.4 mm Weight (Main Body): 10g Temperature Range: Operating temperature: 0°C ~ 60°C Humidity: 20 - 90% (non-condensing) Infrastructure Mode: • Applications: - Internet Access - File sharing - On-line gaming - On-line video conferencing Ad-Hoc Mode: • Applications: - Peer-to-peer gaming - File sharing - Internal conferencing
