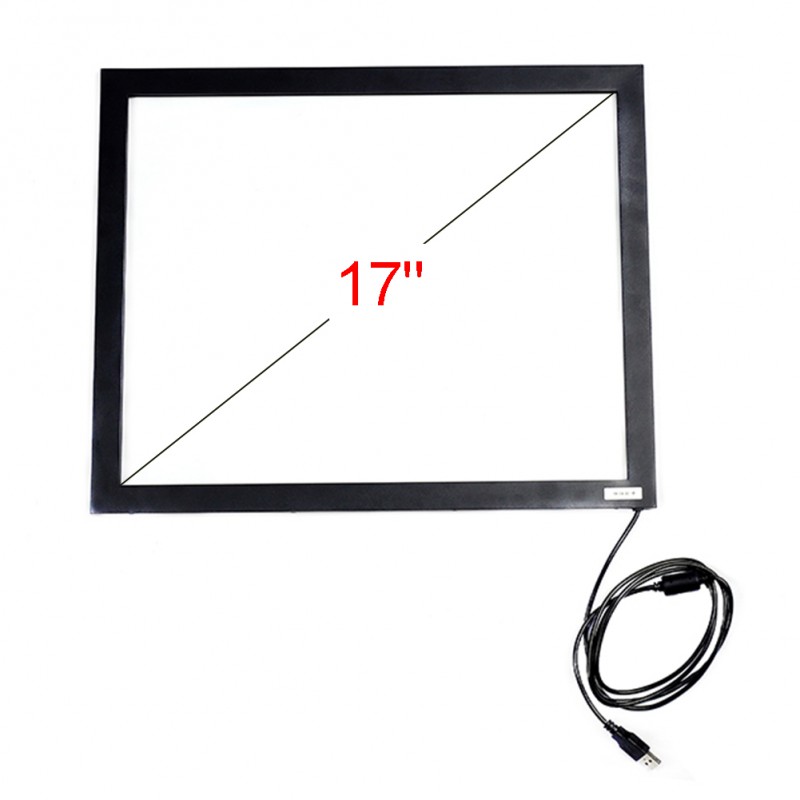

Capacitive Touch Screen 17 inch پنل تاچ اسکرین خازنی

Capacitive Touch Screen 17 inch پنل تاچ اسکرین خازنی شرکت پیشرو SPECIFICATION  MECHANICAL   Diagonal Size 17 inch Outline Dimension 382.0W x 314.0H mm View Area 340.0W x 272.0H mm Touch Points 10 point Minimum Identification Diameter 7*7mm Line Spacing 14mm Touch Accuracy Middle area is less than 1mm, edge is less than 3mm Support Resolution 32768*32768 Responding Speed <10ms Input Method Finger, any opaque touch such as a brush Calibration 4-point calibration Hit Count Unlimited times Touch Pressure No pressure requirement Interface Type USB 2.0+UATR Line length <25m (greater than 5m, should have an amplifier, greater than 10m with amplifier and power supply) Frame Material Aluminum alloy Glass Material Tempered glass Related Characteristics Easy to install, strong compatibility Electrical Specification Scanning Frequency >100Hz/sec Communication Interface USB 2.0 Transfer Speed 480Mbps Power Supply USB 5V power supply, no external power supply required Operating Voltage 4.75~5.25V Working Current 00mA Environmental Specification   Operating Temperature (-15°C~55°C) Storage Temperature (-0°C~7 5°C) Operating Humidity "10% ~ 90% RH, no condensation" Storage Humidity "10% ~ 90% RH, no condensation" Light Resistance <80000Lux (different infrared tubes are used. The strength is different) Electrostatic Level According to EN 100--00: Level 3. Contact discharge 4K, air discharge 8KV (tested in the whole machine)
